Technical Specifications
|
Model |
LRES1048PT |
|
|
Controller |
Mucse RNP N500L-AM4 |
|
|
Cable medium |
Copper |
|
|
Fiber Type |
1000BASE-T、100BASE-TX、10BASE-T |
|
|
Bracket Height |
Low Profile & Full Height |
|
|
Power (min) |
1.836W |
|
|
Power (max) |
3.384W |
|
|
Bus Interface |
PCIe v2.0 (5.0GT/s) x4 |
|
|
Data rate per port |
10Mbps；100Mbps；1Gbps |
|
|
Connector |
4*1G RJ45 |
|
|
Power Supply |
PCIe |
|
|
Operating System Support |
* Deepin 20 /20.6 /20.9 * Galaxy Unicorn V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3/8.4 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 |
* Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai route * Open Kylin 0.7.5 |
|
RSS |
8 queues per port |
|
|
PXE |
Yes |
|
|
MDI/MDI-X |
Yes |
|
|
DPDK |
Yes |
|
|
WoL |
Yes |
|
|
Jumbo Frames |
Yes |
|
|
SCAN CHAIN |
No |
|
|
IEEE 1588 |
Yes |
|
|
SR-IOV |
Yes |
|
|
UEFI |
Yes |
|
|
Jumbo Frame(max) |
9.5KB |
|
|
Protocol Support |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
LED indication
|
10Mbps |
Connection Status |
Green Link |
|
Transfer status |
Green Blink |
|
|
100Mbps |
Connection Status |
Green Link + Green Link |
|
Transfer status |
Green Link + Green Blink |
|
|
1Gbps |
Connection Status |
Green Link + Orange Link |
|
Transfer status |
Green Blink + Orange Link |
Working parameters
|
Operating Temperature |
-40℃ to 85℃ (-40℉ to 185℉) |
|
Storage Temperature |
-40℃ to 85℃(-40℉ to 185℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
|
Certification |
FCC, CE, RoHS |
Physical properties
|
PCB size(unit:mm) |
125*68.8*1.6 |
|
Package size (unit: mm) |
222*147*28 |
Packing list
|
Baffle specifications |
Full bracket(installed) and Low bracket |
|
Network card |
*1 |
|
Product warranty card |
*1 |
|
Packing |
Carton and Blister box |
.jpg)

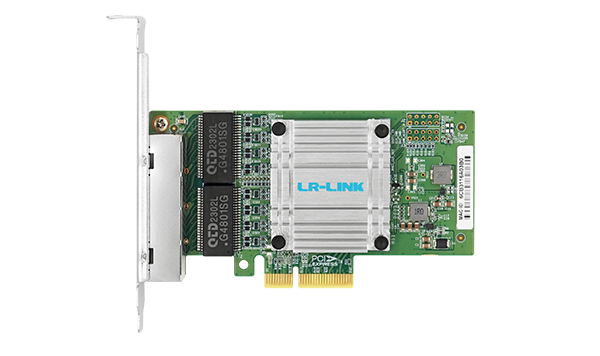

Adaptador de red Ethernet PCIe x4 1G de cuatro puertos (basado en Mucse RNP N500L-AM4)
