LREC9804BF-4SFP+ is a PCIe x8 10Gbps Quad Port SFP+
server adapter based on the Intel XL710 chipset and is compatible with PCIe x16
slot. The server adapter has a
flexible 4 port 10GbE connection rate on a PCI Express V3.0 x8 slot, which is convenient for use
in a use environment with multiple network requirements.
The Server Adapter addresses the demanding needs of
the next-generation agile data center by providing unmatched features for both server
and network virtualization, flexibility for LAN and SAN networks and proven,
reliable performance.
LREC9804BF-4SFP+ is good solution for multiple
networks and deploying key network applications and environments on
high-performance servers.
|
Controller |
Intel XL710 |
|
Transmission Rate Per Port |
10000Mbps |
|
Network Standard Physical Layer Interfaces |
10GBASE-SR, 10GBASE-LR |
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0℃ to 55℃(32°F to 131°F) |
|
Network Virtualization |
VLAN, VLAN tag, VXLAN, NVGRE, GENEVE,VLMB |
|
LED Indicators |
Link Yellow,10Gb/s:Green blinking |
|
SYSTEM SUPPORT |
Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 R2 |
|
Windows 7 / 8 / 8.1 / 10 |
|
|
FreeBSD 11.0or later |
|
|
Linux SLES 11 / 12or later |
|
|
Linux Stable Kernel version 2.6.x/3.x/4.x or later |
|
|
VMware ESX/ESXi 5.x/6.x or later |
|
Model |
Description |
|
LREC9804BF-4SFP+ |
Intel XL710 PCIe x810 Gigabit Quad-Port SFP+Ethernet Server Adapter (4 x SFP+) |
|
LRXP8510-X3ATL |
SFP+ Duplex 10Gbps 3.3V Multi-Mode Transceiver ,850nm 0.3km |
|
LRXP1310-10ATL |
SFP+ Duplex 10Gbps 3.3V Single-Mode Transceiver,1310nm, 10km |
|
SFP+-10G-CU1/3/5M |
10 Gigabit SFP+ Direct Attached Cable 1/3/5m |
|
SFP+-AOC-3M |
10 Gigabit Active Optical Cable Assembles 3m |
PS: Above details are only for reference, if there are any changes, no inform will have.
.jpg)

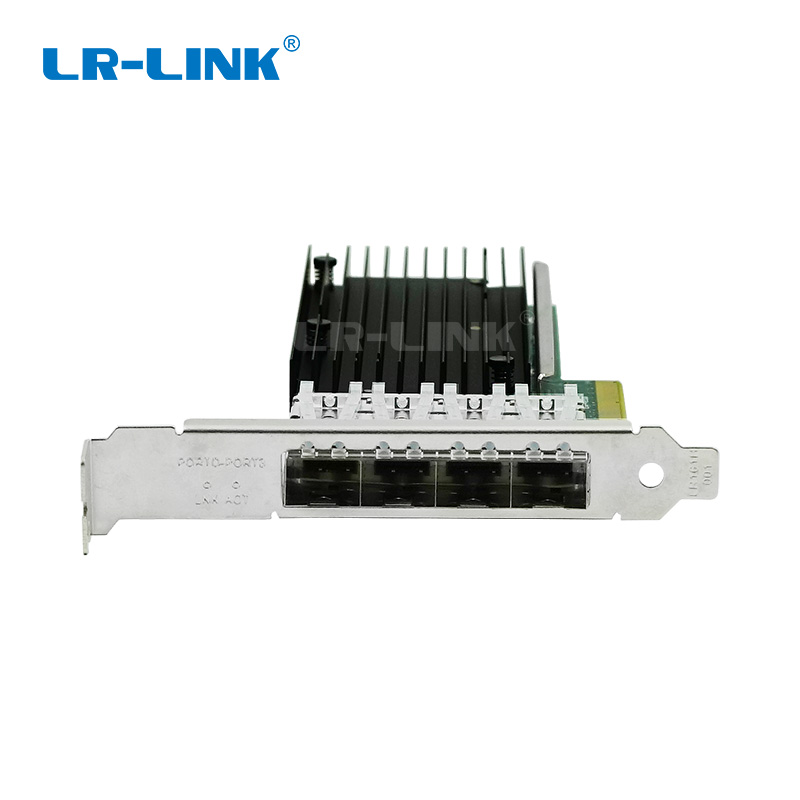

Intel XL710 PCIe x8 10 Gigabit Quad-Port SFP+ Ethernet Server Adapter
.jpg)
Intel XL710 PCIe x8 10 Gigabit Quad-Port SFP+ Ethernet Server Adapter
Intel XL710 PCIe x8 10 Gigabit Quad-Port SFP+ Ethernet Server Adapter
-3.jpg)
Intel XL710 PCIe x8 10 Gigabit Quad-Port SFP+ Ethernet Server Adapter
