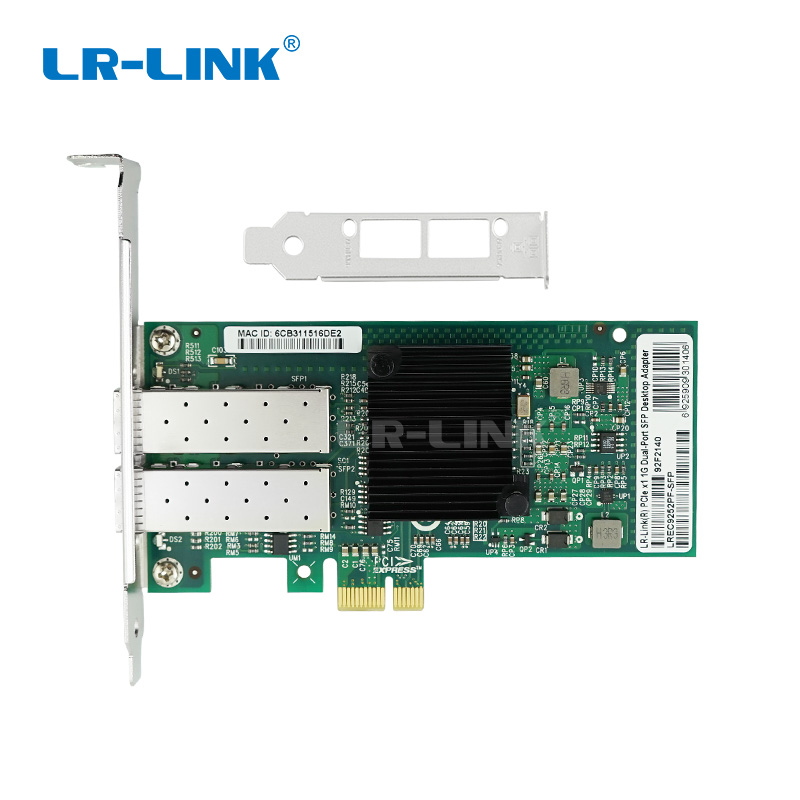

LREC9252PF-2SFP are a PCIe x1 1Gbps Single-Port/Dual-Port Ethernet Fiber Desktop Adapter based on Intel I350AM2 chipset. It is compatible with PCIe x4, x8 and x16 slot. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
|
Controller |
IntelI350 AM2 |
|
Transmission rate per port |
1000Mbps |
|
Network Standard Physical Layer Interfaces |
1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
|
1000BASE-LX: 10Km at 9µm |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
LED Indicators OPERATION |
Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
|
Operating System Support |
Windows Server 2012 R2/2012/2008 R2/2008/2003 |
|
WindowsXP/Vista/7/8/8.1/10 |
|
|
Linux Stable Kernel version 2.6.x/3.x |
|
|
VMware5.x/6.x |
|
Model |
Description |
|
LREC9250PF/9250PF-LX |
IntelI350AM2PCIe x1 1000Base-SX/LX 1 Port Fiber Desktop Adapter(1x SC MM or SM) |
|
LREC9250PF-SFP |
IntelI350AM2PCIe x1 1000Base-SX/LX Single Port Fiber Desktop Adapter(1 x SFP) |
|
LREC9252PF-2SFP |
IntelI350AM2PCIe x1 1000Base-SX/LX Dual Port Fiber Desktop Adapter ( 2 x SFP) |
|
LREC8512-X5ATL |
1.25Gbps SFP Multi-mode Transceiver |
|
LREC1312-20ATL |
1.25Gbps SFP Single-mode Transceiver |
PS: The above details are only for reference,if there are any changes,no prior notice.
