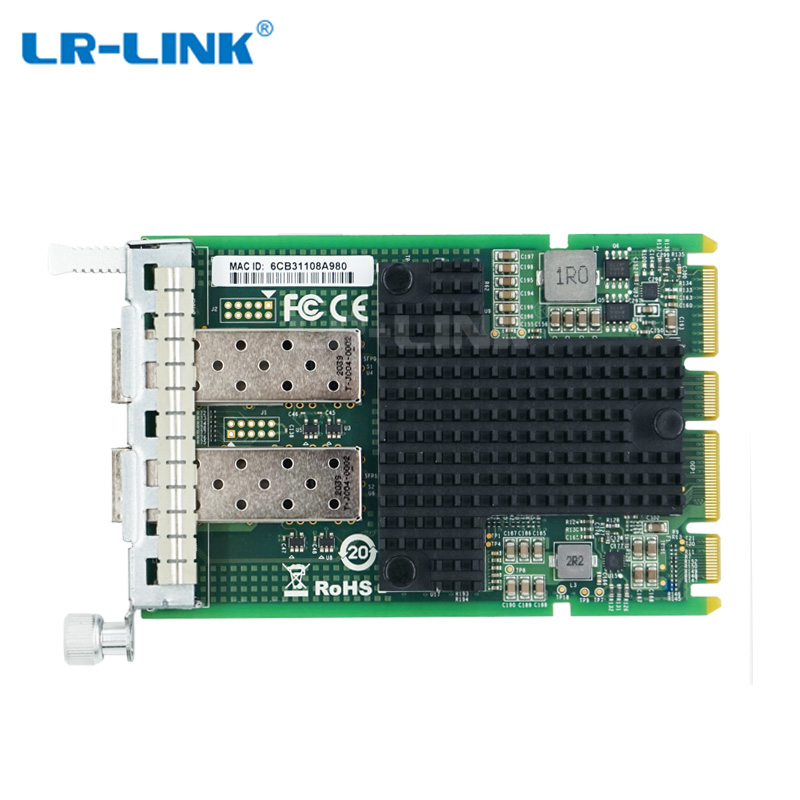

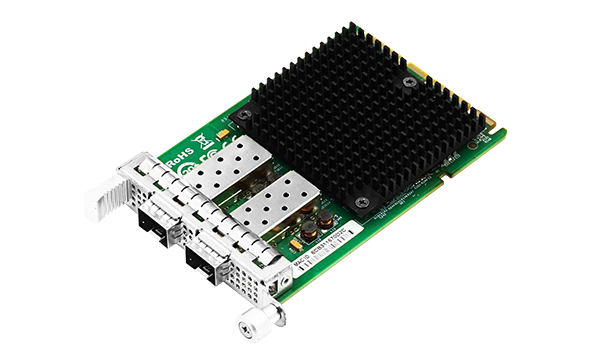

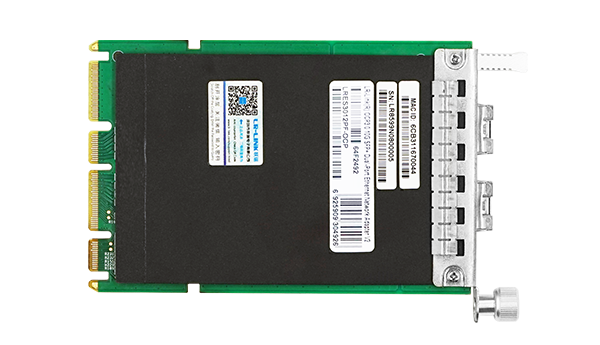

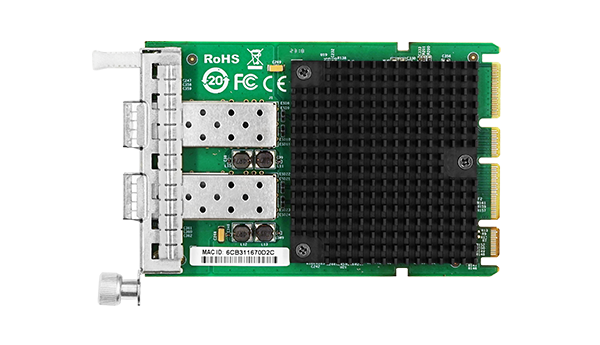

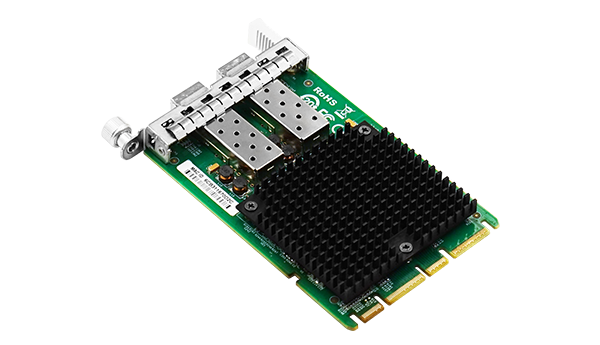

LRES3012PF-OCP

OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel Chip Based)
Key Features
1. Small size (SFF) panels in accordance with OCP 3.0 design specification.
2. It supports fault tolerance and redundancy by bundling and aggregating multiple ports to ensure network performance and expand network bandwidth. It can implement real-time self detection and route the communication from the fault port to other members in the same group to continue running to achieve uninterrupted high-performance communication.
3. In addition to stateless offloading, the adapter card can also distribute the network traffic to the CPU core, which improves the network throughput.
4. It is applied to meet the needs of current and long-term server market for network traffic and data diversion, processing and virtualization, big data computing and cloud computing.

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products


LRES3012PF-OCP is a PCI Express v2.0 OCP 3.0 dual-port optical fiber Ethernet network Mezzanine card developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel master control scheme, using a physical board size in accordance with OCP 3.0 design specifications, small size (SFF) panel. The fit card meets the needs of the next generation of data centers by providing features for server and network virtualization technologies. Provide reliable performance on flexible LAN and SAN networks. The fit card has a flexible dual-port 10GbE link rate on a PCI Express v2.0 SFF structure.

This adaptive card enables fault tolerance and redundancy in groups through multiple port bundles at the same time to guarantee network performance and extend network bandwidth, enables real-time self-detection, and enables the routing of traffic from failed ports to other members of the same group to continue to operate for uninterrupted, high-performance communication. In addition to stateless uninstall, the adaptive card can also be distributed over network traffic to the CPU core, improving the throughput of the network.

The LRES3012PF-OCP server fit card is designed to perform well in multiprocessor systems. It is used to meet the needs of the current and longer-term server market for network traffic and data se throughout, processing and virtualization and big data computing, cloud computing, etc.



                        Specifications

Controller

Intel Chipset

Baffle Height

*

Power Consumption

8.0W

System Support

Windows 7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

OCP 3.0

Data rate supported per port

10000MbE

Connector

2*SFP+



                      Technical Features

Protocol Support

IEEE802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.3x Full Duplex and flow control

IEEE 802.1AS

IEEE 802.1Q VLAN

IEEE 802.3AD

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

Yes

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

Yes






P/N

Description

LRES3012PF-OCP

OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel Chip Based)



PS: Above details are only for reference, if there is any change,no prior notice.
