OCP Type-1 Dual-Port 10G SFP+ Server Adapter
Chinese English Russian German Spanish Japanese
  • Type-1 Dual-Port 10G SFP+ OCP Mezzanine Card ( Net-swift SP1000A Chipset)
  • Type-1 Dual-Port 10G SFP+ OCP Mezzanine Card ( Net-swift SP1000A Chipset)

LRES3001PF-OCP

Type-1 Dual-Port 10G SFP+ OCP Mezzanine Card ( Net-swift SP1000A Chipset)
Key Features

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

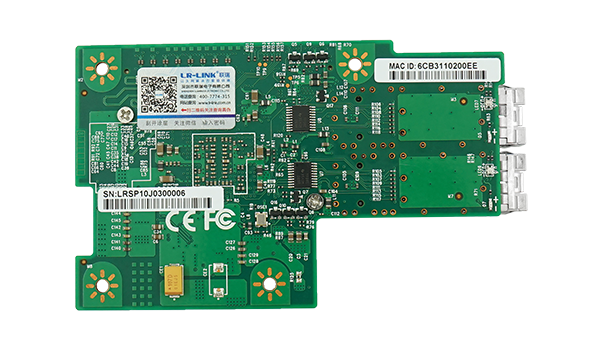

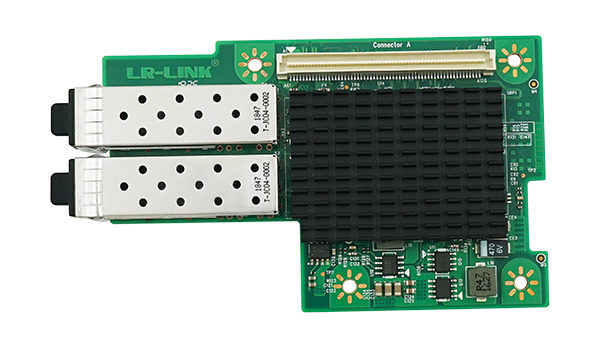

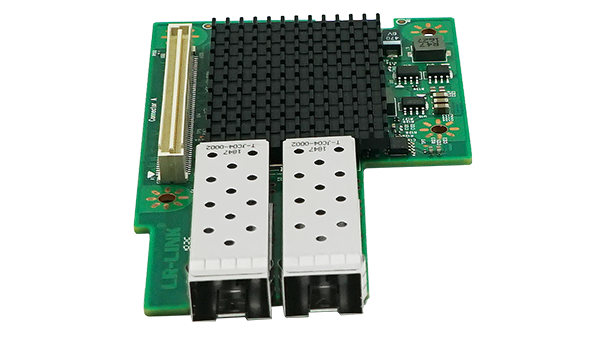

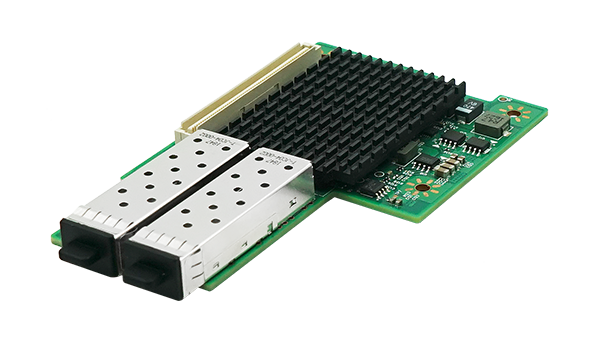

LRES3001PF-OCP is OCP Type-1 10 Gigabit dual port fiber optic Ethernet server adapter card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the online chip control scheme of Netswift SP1000A. The card is designed for server-oriented and high-end devices. This server adapter makes it easy to share the more efficient servers and data centers in the general IT industry.


Shenzhen Lianrui Electronics Co., Ltd. launched this Ethernet optical fiber network card (LRES3001PF-OCP) with independent intellectual property rights. This fiber-optic network card has LAN performance acceleration, network security, network convergence, network virtualization, data center bridging, etc. The function of the single port is 10Gbps, the number of logic gates of the main controller reaches 18 million, the on-chip SRAM capacity reaches 25Mbit, and the PCIE 3.0 serial bus host interface is supported.


The controller used in the LRES3001PF-OCP is the Netswift SP1000A, which is self-controllable. There are major innovations in the layered DMA queue architecture, seamless switching of virtual machine hot migration networks and cross-slices, and the overall technology has reached the international advanced level. Indicators including average transmission delay and actual packet transmission rate have reached the highest level disclosed in the industry. And has passed the X86, SW, FT and other platforms for authoritative testing and application, showing excellent performance.
LRES3001PF-OCP is used to adapt to the needs of server, workstation and Internet data centers for network traffic and data offloading, processing and virtualization and big data operations.

Specifications

Controller

Net-swift SP1000A

Cable

10G SFP+ DAC, 10G SFP+ AOC

Cable Type

10GBASE-SR, 10GBASE-LR, SFP+ Coppe,

Board height

OCP Type-1

Power(max)

10.7W

Operating System Support

Windows 7

Windows 8/8.1

Windows 10

Windows Server 2003 /2003 R2

Windows Server 2008 /2008 R2

Windows Server 2012 /2012 R2

Windows Server 2016 /2016 R2

Stable Kernel version 2.6.x3.x4.x or later

SUSE Linux Enterprise Server 10,11 or later

FreeBSD 9,10 or later

Red Hat Enterprise Linux 5,6 or later

VMware ESX/ESXi 4.x,5.x,6.x or later

Connector

2 * 10G SFP+

Speed

10G (SFP+)

Technical Parameters

Ethernet Power Management

Yes

IEEE Standard

IEEE 802.3ae 10GBase-SR10GBase-LR10GBase-ER10GBase-ZR
IEEE 802.3aq 10GBase-LRM

IEEE 802.1Qbg Virtual Bridging

IEEE 802.1Qbb Priority Flow Control

IEEE 802.1Qaz Enhanced Transmission Selection

IEEE 802.1Qau

PXE

Yes

iSCSI

Yes

VMDqSR-IOV

Yes

IPsec

Yes

IPv4/IPv6

Yes

RSS

Yes

Jumbo Frame(max)

9.5KB

RSCTSO Offload

Yes

Network virtualization support

VXLANgeneveNVGRE

Environment Features

Operating Temperature

0 ℃ to 55 ℃ (32 ℉ to 131℉)

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

5%~90% non condensing

Certificate

FCC CE RoHS

LED Indicator

LED Indicator

Green Link(Link Indicator) + Green BlinkAck Indicator

M/N

Description

Noted

LRES3001PF-OCP

OCP Type-1 Dual-port 10G SFP+ OCP Mezzanine Card

Based on Net-swift SP1000A
