LRES2206PT

Mini PCIe Single Port Gigabit Copper Ethernet Server Adapter (Intel I210 Based)
Key Features
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

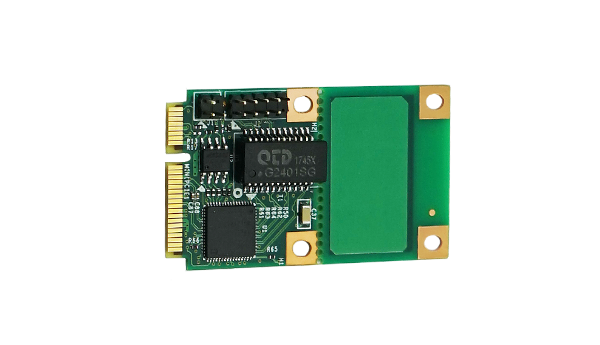

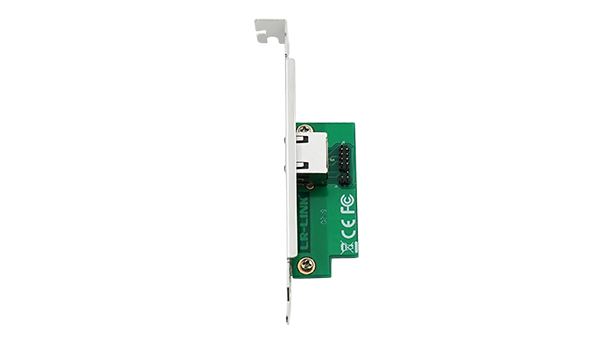

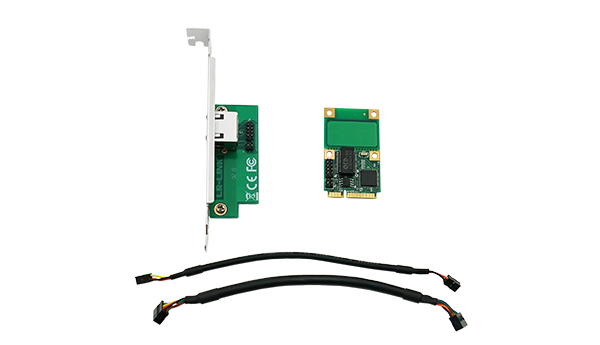

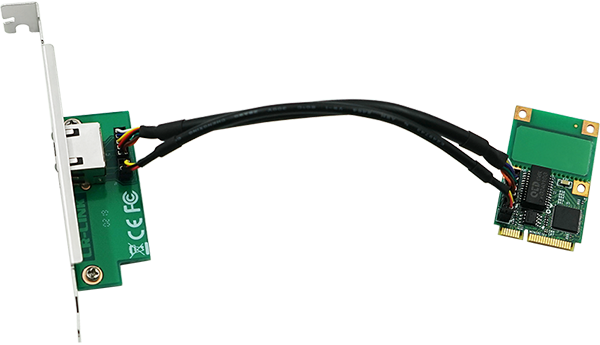

LRES2206PT is a Mini PCIe x1 full-height (half-height) single-port Gigabit Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I210 solution. This adapter card is designed with Mini PCI-e slot and is designed for industrial equipment such as industrial PCs and single-board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The adapter card supports 10/100/1000Mbps adaptive link rate network for data transmission in industrial field.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

Specifications



Controller

Intel(R) I210



Transmission medium

Copper



Type

1000Base-T Cat 5E/6 or higher , up to 100m



100Base-Tx Cat5/5E/6 or higher , up to 100m



10Base-T Category 3/4/5/5E/6 or higher , up to 100m



Baffle Height

Half & full height



Power Consumption

1.0W



Connector

1*1G RJ45



PCI-e Bus Type

Mini PCI Express



Data rate per port

10/100/1000Mbps



Power supply

Mini PCIe



Standards compliant

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs
IEEE 802.3x
IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)



OS Support

* Windows 78/8.110

* Windows Server 2008 / R2

* Windows Server 2012 / R2

* Windows Server 2016 / R2

* Windows Server 2019 / R2

* Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

* CentOS / RHEL 6.x / 7.x or later

* Ubuntu14.x/16.x or later

* FreeBSD 9 / 10 / 11 or later

* Vmware ESX/ESXi 5.x / 6.xor later



PXE

No



DPDK

Yes



WOL

No



iSCSI

Yes



Jumbo Frames

Yes



FCoE

No



LED Indication



LED Indication

1000MbpsOrange bright + Green flashing



10Mbps/100Mbps: Green flashing



Environment Features



Operating Temperature

0 to 55 (32 to 131)



Storage Temperature

-40 to 70 (-40 to 158)



Storage Humidity

Maximum: 90% non-condensing relative humidity at 35



Certification

FCC B,CE



Physical Features

Product Size(mm)

30*50.9*1.0 + 63*25.3*1.6

Sackage Size (mm)

170*150*30

Weight(g)

139




M/N

Description

LRES2206PT

Mini PCIe Single Port Gigabit Copper Ethernet Server Adapter (Intel I210 Based)
