LRES2204PF-SFP

Mini PCIe Single Port Gigabit SFP Ethernet Network Adapter Intel i210 Based (1 x SFP)
Key Features
·Low cost, low power,energy-efficient Ethernet and DMA merging.
·Single-port 1000MBASE-X controller with integrated MAC and PHY
·Four transmit queues and four receive queues per port.
·1000Mbps Fiber Ethernet networks transition.
·Mini PCI Express interface

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

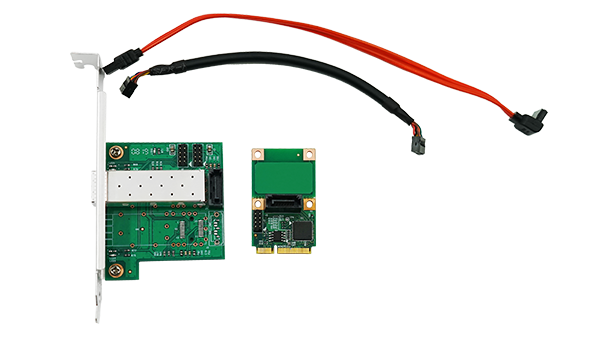

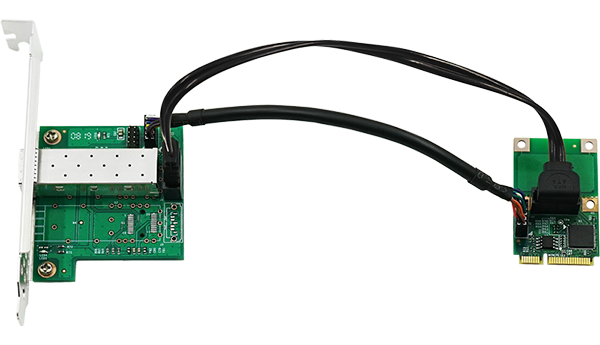

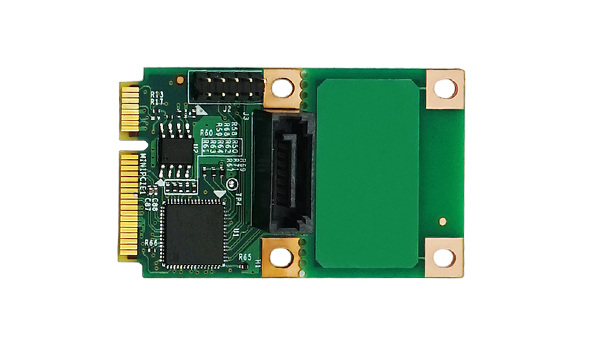

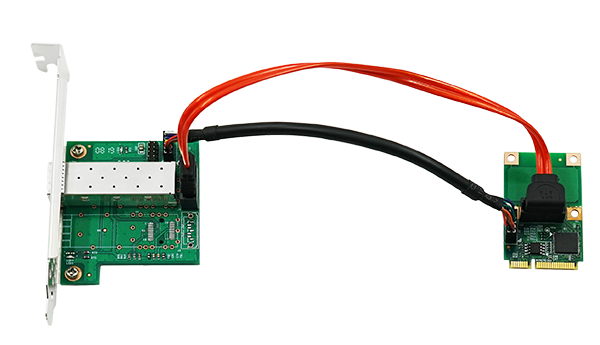

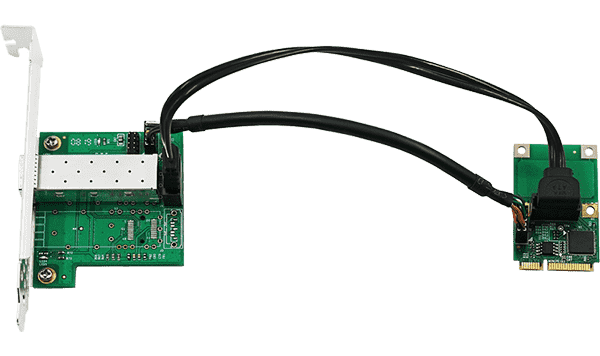

LRES2204PF-SFP is a Mini PCIe x1 full-height (half-height) single optical port SFP Gigabit Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on Intel I210 solution. This adapter card is designed with Mini PCI-e slot and is designed for industrial equipment such as industrial PCs and single-board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The adapter card supports a 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

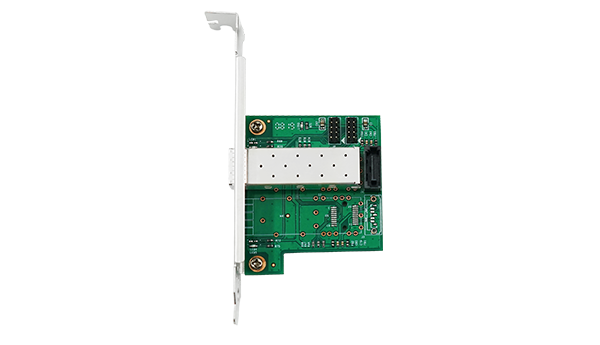

LRES2204PF-SFP is a single-port SFP fiber adapter card. Users can select fiber optic modules according to actual transmission distance requirements. At the same time, the adapter card uses INTEL I210 server controller, which has high performance, high stability, high quality and very good compatibility. Sex, compatible with all brands of computers and fiber switches.




Specifications

Controller

Intel i210

Baffle Height

Full height and half height

Power Consumption

1.0W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2;

Linux Stable Kernel version 2.6.32/3.x/4.x or later;

Linux CentOS/RHEL 6.5 / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

Mini PCIe

Data rate supported per port

1000MbE

Connector

1*SFP

Technical Features

Standards compliant

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

YES

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No

Environment Features

Operating Temperature

0 to 55 (-13 to 158 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Physical Features

Size(mm)

147*120*21

Weight(g)

100

LED Indicators

LED Indicators

Yellow Link + Green Blink



M/N

Description

LRES2204PF-SFP

Mini PCIe Single Port Gigabit SFP Ethernet Adapter (Intel i210 Based)
