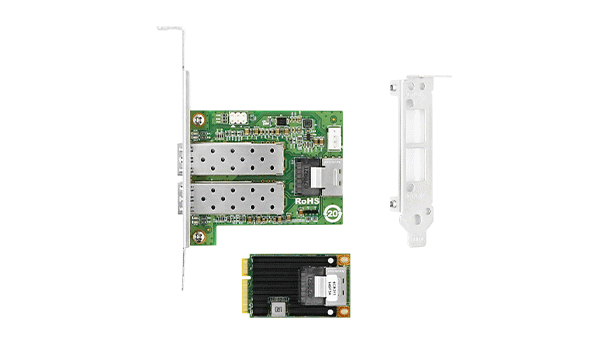

LRES2203PF-2SFP

Intel I350 Based Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (2 x SFP)
Key Features
Intel I350 Chipset
Dual Port 1000Mbps SFP adapter
Mini PCIe lanes
9 KB jumbo frame support
PXE Support
Flow Control Support
Low Profile and full-Height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

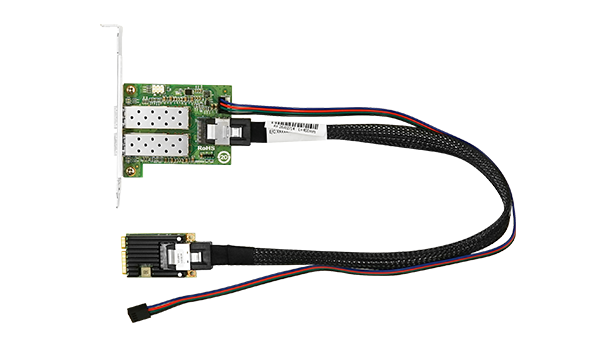

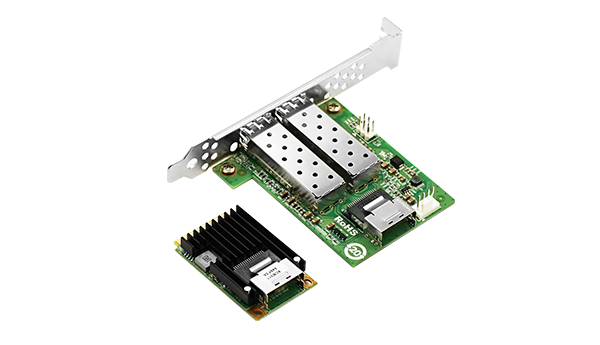

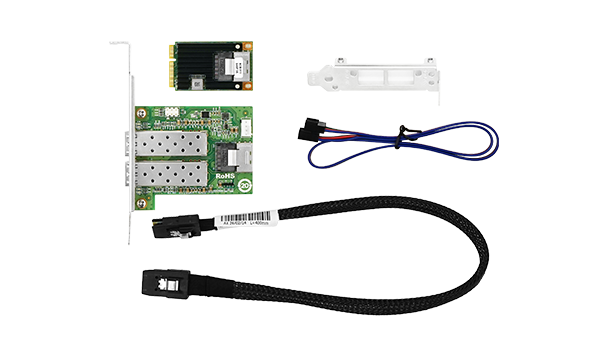

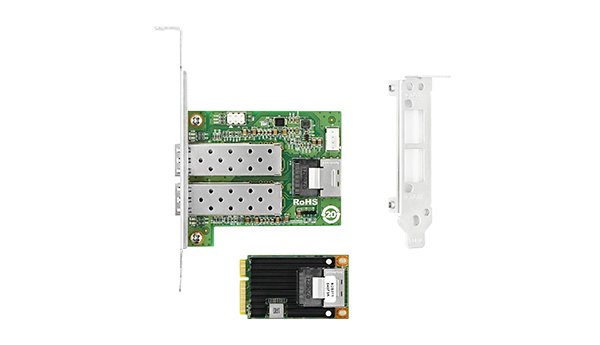

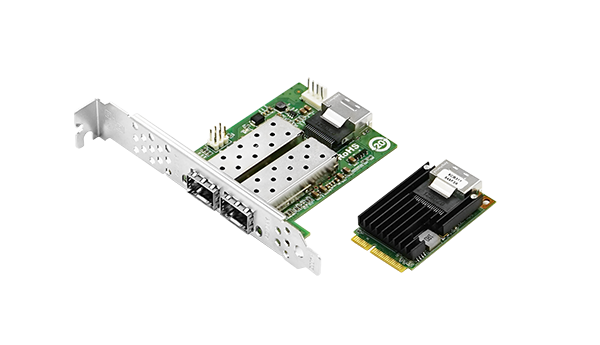

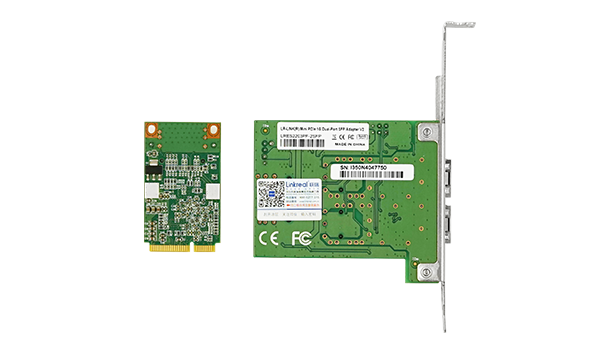

LRES2203PF-2SFP based on Intel I350 controller, is a Mini PCIe dual-port SFP Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd.
This adapter card is designed with Mini PCI-e slot and is designed for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter card supports a dual port 1000 Mbps link rate.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can support Windows, Linux and other systems, and has excellent security and stability in complex environments. .

Specifications

Controller

Intel(R) I350

Fiber Medium

1G SFP AOC/DAC

Fiber Type

1000Base-SX/1000Base-LX/ SFP

Bracket

Low Profile and Full-height Bracket

Power(max)

3W

Operating System Support

Windows XP

Windows 7

Windows Vista

Windows 8/8.1

Windows 10

Windows Server 2003

Windows Server 2008

Windows Server 2008 R2

Windows Server 2012

Windows Server 2012 R2

Windows Server 2016

Windows Server 2016 R2 Core

Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later

RHEL/CentOS  5.x/6.x/7.x or later

Linux SLES 11 SP3 / SLES 12 or later

FreeBSD 9 / 10 / 11 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Connector

2*SFP

PCIe Bus

Mini PCI Express

Transmission Rate

1000Mbps

Technical Parameters

IEEE Standard

IEEE802.3ad

IEEE 802.1p

IEEE 802.1Q VLANs
IEEE 802.3z 1000BASE-X Gigabit Ethernet

PXE

Yes

DPDK

Yes

Jumbo Frame

Yes

iSCSI

No

FCoE

No

WOL

No

Environment Features

Operating Temperature

0 to 55 (32 to 131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

90% non condensing under 35

Certification

FCC B, UL, CE, VCCI, BSMI, CTICK, MIC

LED

LED

1000Mbps:Green + Green Blink

Physical Features

PCB size(mm)

51*30*1.0(M)

Weight(g)

35

P/N

Description

Noted

LRES2203PF-2SFP

Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter

Base on Intel(R) I350, 3U/2U  bracket





PS: Above details are only for reference, if there are any changes, no inform will have.
