LRES1006PF-6SFP

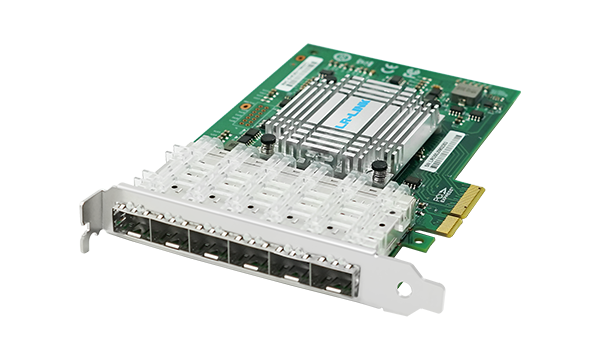

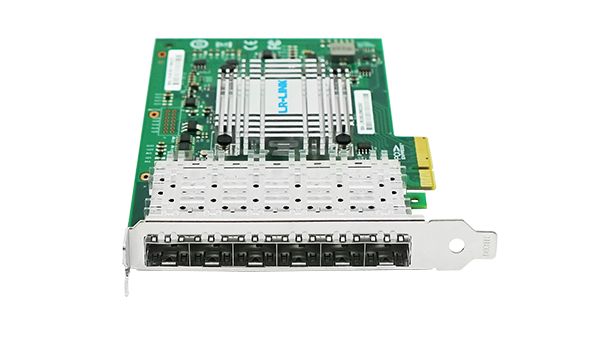

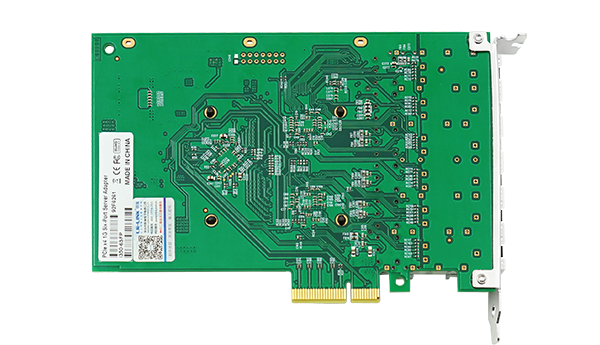

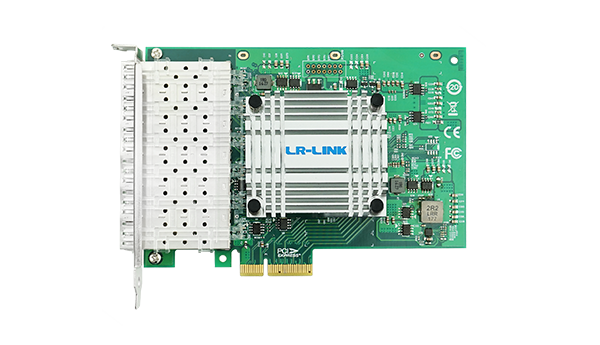

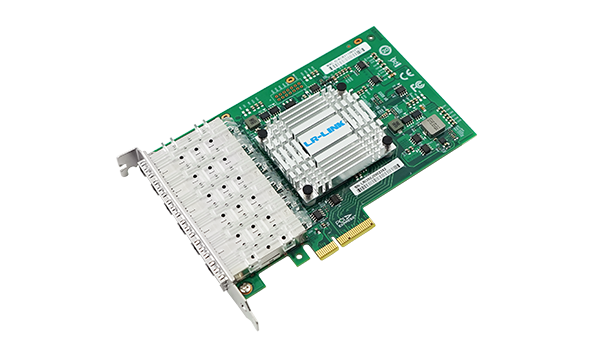

Intel I350 Chipset 1Gbps PCIe x4 6 port Server Adapter ( 6 x SFP)
Key Features
Intel I350 Chipset 1Gbps PCIe x4 6 port Server Adapter ( 6 x SFP)

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LRES1006PF-6SFP is PCI Express x4 six-port Gigabit SFP Ethernet server adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 master control solution. Another high-performance Gigabit fiber optic network card designed. The adapter is designed for use on servers and high-end devices. And the performance is optimized, so that system I / O is no longer the bottleneck of high-end network applications. The adapter can be bundled into groups for fault tolerance, automatically detecting and routing communications from the failed port to other members of the same group to continue operation for uninterrupted communication. The adapter has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing technology can offload the accelerator and free up CPU resources to free up more CPU resources to handle other applications. The adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.


LRES1006PF-6SFP adapter is equipped with dedicated PCI Express input/output (I/O) bandwidth in a Gigabit Ethernet connection over a fiber network to ensure superior performance without consuming bus bandwidth. The onboard 6 SFP slots are compatible with various Gigabit SFP modules. Users can select the Gigabit fiber modules to be used according to the actual transmission distance without replacing the network card. This adapter supports the PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).

LRES1006PF-6SFP network card is suitable for Gigabit fiber optic Ethernet, has excellent noise immunity, and also supports long-distance fiber connection. The adapter supports Intel PRO Smart Install and the new Intel PROSet designed for Microsoft Device Manager, simplifying the installation and management process. The Intel PROSet program simplifies the installation process for the adapter.

Specifications

Controller

Intel(R) I350

Cable

1G SFP / AOC/ DAC

Cable Type

1000Base-SX/1000Base-LX/1000Base-T

Bracket

Full-height Bracket

Power(max)

3.6W

Operating System Support

Windows 10

Windows 8/8.1

Windows 7

Windows Vista

Windows XP

Windows Server 2019 /R2

Windows Server 2016 /R2

Windows Server 2012 /R2

Windows Server 2008 /R2

Windows Server 2003 /R2

Linux kernel 2.4.x/2.6.x/3.x/4.x or later

FreeBSD 7.x or later

UnixWare / Open Unix 8

Sun Solaris 9/10/11 or later

VMware ESX/ESXI 5.x/6.x or later

Connector

6 * 1G SFP

PCIe

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4compatible x8x16

Speed

1000Mbps

Power Supply

PCIe

Technical Parameters

Ethernet Power Management

Yes

IEEE Standard

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control
IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

PXE

Yes

DPDK

Yes

Jumbo Frame

Yes

iSCSI

Yes

WOLE

No

FCoE

No

Environment Features

Operating Temperature

0℃ to 55℃(32℉ to 131℉)

Storage Temperature

-40℃to 70℃ (-40℉ to 158℉)

Storage Humidity

90% non condensing under 35

Certificate

FCC A, UL, CE, VCCI, BSMI, CTICK, KCC

LED Indicator

LED Indicator

1000Mbps: Green LinkYellow Blink

Driver

Windows

Intel(R) I350 Gigabit Fiber Network Connection

Linux

Intel Corporation I350 Gigabit Fiber Network Connection (rev 01)

Physical Features

PCB size(mm)

165*68*1.6

Weight(g)

112

M/N

Description

Noted

LRES1006PF-6SFP

PCIe x4 Six-Port Gigabit SFP Ethernet Server Adapter

Based on Intel I350,3U Bracket
