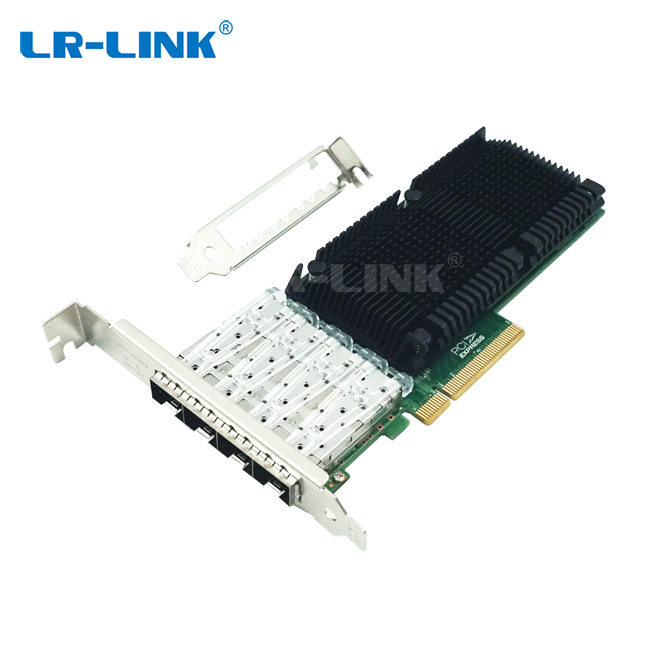

LRES1005PF-4SFP+

PCIe x8 Quad Port 10G SFP+ Ethernet Network Adapter with RDMA (Qlogic QL41xxxx Based)
Key Features
LRES1005PF-4SFP + is a PCI Express v3.0 x8 Quad-port fiber 10G Ethernet server adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Qlogic QL41xxxx solution.

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LRES1005PF-4SFP + is a PCI Express v3.0 x8 quad-port fiber 10G Ethernet server adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Qlogic QL41xxxx solution. The adapter is designed for large-capacity converged networks and is backward compatible with PCIe v2.1 / v2.0 / v1.1. The adapter can achieve four-port full-duplex throughput of up to 80GB on a PCI Express v3.0 x8 slot.

This Ethernet optical network card LRES1005PF-4SFP + product supports stateful and stateless offloading, and includes functions such as network virtualization offloading, storage offloading, etc., and can be connected to the switch through FastLinQ SmartAN without user intervention.

Supports CIFS, NFS for network storage, RoCE, iWARP to support RDMA applications and use cases, and supports all offload traffic types on each port. This feature offload can bring excellent storage and network performance, as well as lower CPU usage, thereby significantly improving system performance. Supports the sideband interface (NC-SI) of the network controller, and supports communication between the host and the management controller (BMC) on top of the NC-SI to allow high speed between the local host and the BMC or management controller (MC) Communication.


                                                                   Specifications

Controller

Qlogic QL41xxxx

Baffle Height

Full height & half height

Fiber Type

10GBase-SR10GBase-LR10GBase-ER

10GBase-ZR10GBase-LRM10GBase-Cu

Power Consumption

11.8W

System Support

Windows 10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

CentOS / RHEL 7.4 or later

Ubuntu 16.10 or later

Linux Kernel 4.x/5.x or later

VMware ESXi 6.x or later

Bus Type

PCI Express v3.0 (8.0GT/s) x8 , compatible x16

Data Rate per Port

10000MbE

Connector

4*SFP+



                                                                                Technical Features

Standards Compliant

IEEE 802.3ae 10GBase-X

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ad          IEEE 802.1Q VLAN

IEEE 802.1Qaz         IEEE 802.1Qbb

IEEE 802.1AS          IEEE 802.1AX

RDMA(RoCEiWARP)

Yes

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No

VMDqSR-IOV

Yes

IPsec

Yes

Network Virtualization

VXLANgeneveNVGRE



                                                                 Environment Features

Operating Temperature

0 to 55 (-13 to 158 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35




                                                                                    Order Information

P/N

Description

LRES1005PF-4SFP+

PCIe x8 Quad Port 10G SFP+ Ethernet Network Adapter (Qlogic QL41xxxx Based)
