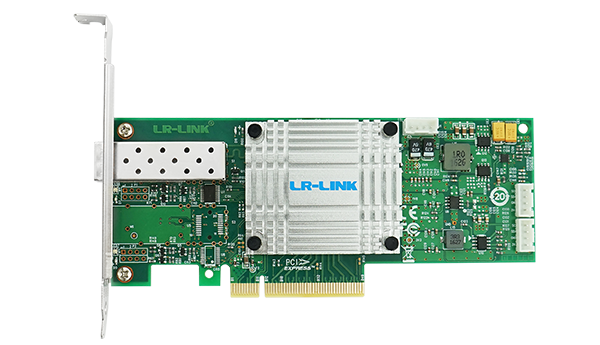

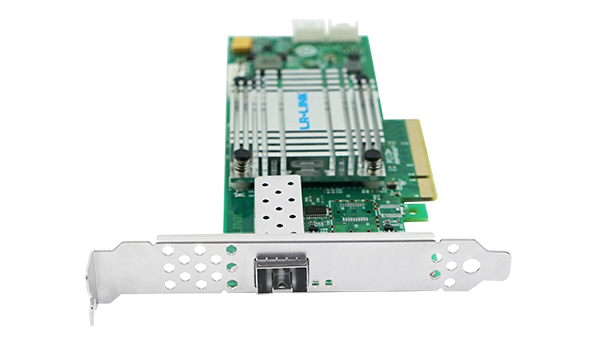

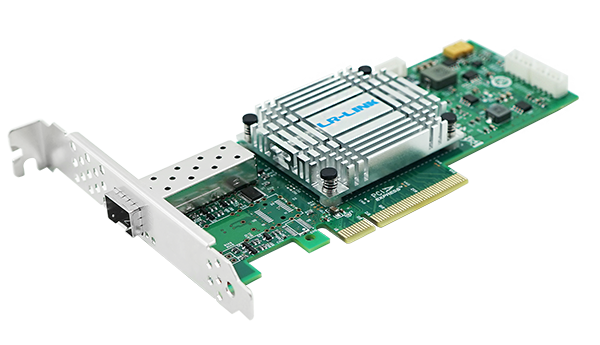

LRES1003PF-SFP+

PCI Express x8 Single Port SFP+ 10G Server Adapter (Netswift SP1000A Based)
Key Features

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LRES1003PF-SFP+ is PCI Express v3.0 x8 dual optical port 10G Ethernet server adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Netswift SP1000A that is domestic chip master control solution. The product is also compatible with PCI- e v3.0 x16 and support for PCI-e v2.1/v2.0/v1.1. The adapter has a theoretical throughput of 20GB for a two-port bi-directional transfer rate on a PCI Express v3.0 x8 slot and a 40GB bi-directional link rate for dual ports.

Shenzhen Lianrui Electronics Co., Ltd. launched this Ethernet optical fiber network card (LRES1003PF-SFP+) with independent intellectual property rights. This fiber-optic network card has LAN performance acceleration, network security, network convergence, network virtualization, data center bridging, etc. The function of the single port is 10Gbps, the number of logic gates of the main controller reaches 18 million, the on-chip SRAM capacity reaches 25Mbit, and the PCIE 3.0 serial bus host interface is supported.

The controller used in the LRES1003PF-SFP+ is the Netswift SP1000A, which is self-controllable. There are major innovations in the layered DMA queue architecture, seamless switching of virtual machine hot migration networks and cross-slices, and the overall technology has reached the international advanced level. Indicators including average transmission delay and actual packet transmission rate have reached the highest level disclosed in the industry. And has passed the X86, SW, FT and other platforms for authoritative testing and application, showing excellent performance.

LRES1003PF-SFP+ This server adapter card is used to adapt to the needs of server, workstation and Internet data centers for network traffic and data offloading, processing and virtualization and big data operations.


Specifications

Controller

Netswift SP1000A

Cable

Fiber

Cable Type

10GBase-SR, 10GBase-LR, 10GBase-ER

10GBase-ZR,10GBase-LRM, 10GBase-Cu

Bracket

Low Profile and Full-height Bracket

Powermax

5.5W

Operating System Support

Windows Server 2016 R2

Windows Server 2012 R2

Windows Server 2012

Windows Server 2008 R2

Windows 10

Windows 8/8.1

Windows 7 x64

Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

CentOS / Red Hat Enterprise Linux 6.8 / 7.x or later

Ubuntu  16.04/16.10/17.04/17.10/18.04 or later

FreeBSD 10.3 / 11 or later

Linux SLES 12 SP2 or later


Connector

1 * SFP+

PCIe

PCI Express v3.0 (8.0GT/s) x8, compatible x16

Speed

10GbE

Technical Parameters

Ethernet Power Management

Yes

Transmission Rate

10GbE

IEEE Standard

IEEE 802.3ae 10GBase-SR,10GBase-LR,10GBase-ER,10GBase-ZR
IEEE 802.3aq 10GBase-LRM

IEEE 802.1Qbg Virtual Bridging

IEEE 802.1Qbb Priority Flow Control

IEEE 802.1Qaz Enhanced Transmission Selection

IEEE 802.1Qau

PXE

Yes

iSCSI

Yes

SR-IOV

Yes

IPsec

Yes

IPv4,IPv6

Yes

RSS

Yes

Jumbo Frame

9.5K

RSCTSO Offload

Yes

Network virtualization support

VXLAN, geneve, NVGRE

Environment Features

Operating Temperature

-25 to 70 (-13 to 158 )

Storage Temperature

-40 to 85 (-40 to 185 )

Storage Humidity

90% non condensing under 35



Certificate

FCC Class A

LED Indicator

Green Link + Green Blink

Physical Features

Sizemm

162*68.8*1.6

Weightg

122

Packing detail

Package box(mm)

224*147*30

2U bracket

*1

Install book

*1

Warranty Card

*1

G.W.(g)

205

P/N

Description

Noted

LRES1003PF-SFP+

PCIe x8 Dual SFP+ Ports 10G Ethernet Server Adapter

Based on Netswift SP1000A, 3U/2U Bracket
