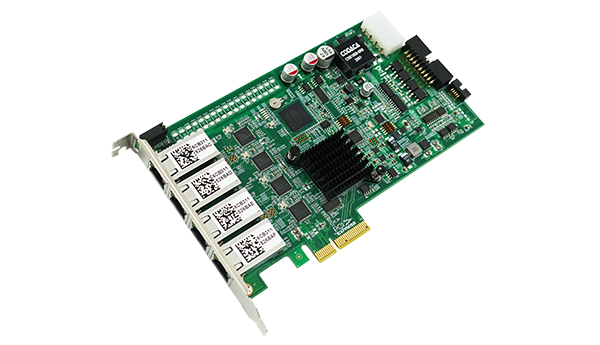

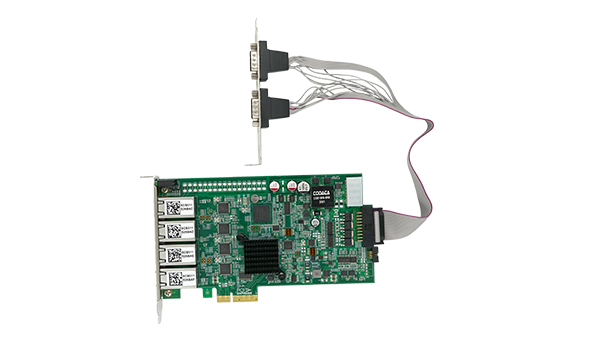

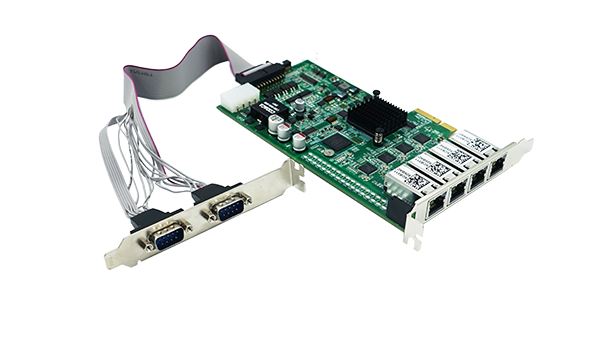

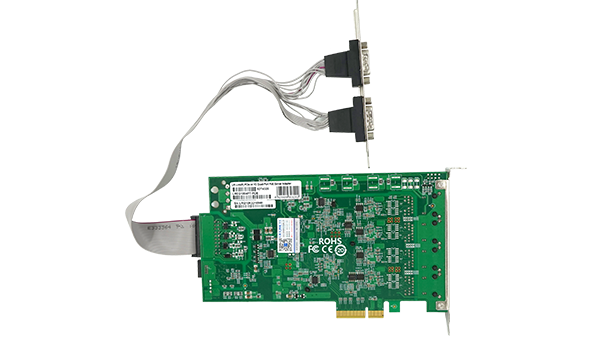

LREG1004PT-POE

PCIe x4 Quad-port Gigabit PoE+ Ethernet I/O Frame Grabber Card with Hardware ToE
Key Features
• Joint software & hardware solution
Integrated software and hardware TOE, software online management collaboration function, software and hardware combination to better achieve management and maintenance.
• Time synchronization trigger
Data, power supply and trigger signal are transmitted through a single connection line to ensure that each port is synchronized in time to obtain the trigger signal.
• PoE protection
According to the terminal adaptive output PoE power, adapt to class0\1\2\3\4, up to 30W per port, while providing overvoltage and overcurrent protection.
• High temperature resistance
Support high temperature use.
• Doka use
Support multiple boards to be used on one system at the same time.
• I/O Support
Support 4 in 4 out I / O interface.

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LREG1004PT-POE is a quad-port gigabit PoE+ Ethernet image acquisition card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel main control chip solution. The capture card conforms to the GigE Vision standard and allows users to use standard cables for fast image acquisition and transmission in industrial machine vision work connected to industrial cameras.

The Ethernet frame grabber has a TOE (Trigger Over Ethernet) function, which integrates an advanced Ethernet trigger based on FPGA, which can accurately synchronize multiple cameras to trigger acquisition, which reduces the cost of hardware and IO in practical applications. It is also convenient for wiring and use on site.

Each card of the capture card integrates four Gigabit Ethernet interfaces, which can support multiple capture cards installed on a system, and perform consent management control and unified triggering, and support online viewing of the camera port status.

There is also a software trigger on the TOE trigger mode. This trigger mode is more flexible and convenient. You can directly input a specific trigger online without adding additional hardware devices. Then the entire TOE trigger mode is as follows: 1. External synchronous pulse input, 2. Quadrature encoder input. These two are based on FPGA hard-wired logic, which can ensure accurate and reliable triggering.

The capture card has a PoE power output protection mechanism, which automatically adjusts the PoE output according to the power of the terminal device to avoid damage to the device due to overcurrent output, and provides overcurrent and overvoltage protection for protecting the camera.

The LREG1004PT-POE intelligent frame grabber card is particularly suitable for machine vision, 3D image acquisition, process control, multi-directional machine vision positioning, medical imaging, traffic monitoring, motion analysis, precise positioning, etc. due to its excellent performance. Use in demand areas.

                                                   Specifications

Controller

Intel

Transmission medium

Copper

Medium Type

Cat 5E and Cat6: 1000Base-T up to 100m (POE power supply minimum requirement Cat5)

Cat 5E and Cat6: 100Base-T up to 100m (POE power supply minimum requirement Cat5)

Baffle Height

Full Height

PoE Output (Max)

30W/port

OS Support

Windows 78/8.110

Windows Server 2008 / R2, 2012 / R2, 2016 / R2, 2019 / R2

CentOS / RHEL 6.x / 7.x or later

Ubuntu14.x/16.x or later

FreeBSD 9 / 10 / 11 or later

Vmware ESX/ESXi 5.x / 6.x or later

Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

Bus Type

PCIe v2.1 x4

Data rate per port

10/100/1000Mbps

Connector

4*1G RJ45

Power Supply

PCIe + ATX

                                                Technical Features

Standards compliant

GigE Vision

IEEE802.3af -2003 PoE standard

IEEE802.3at -2009 PoE standard

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

No

FCoE

No


P/N

Description

LREG1004PT-POE

PCIe x4 Quad-ports Gigabit Copper Ethernet Frame Grabber With Hardware ToE  (Intel Chipset Based)
