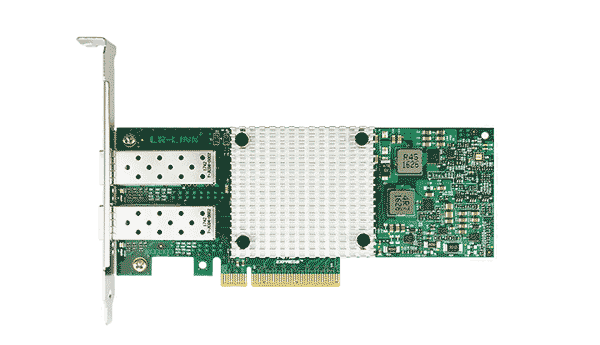

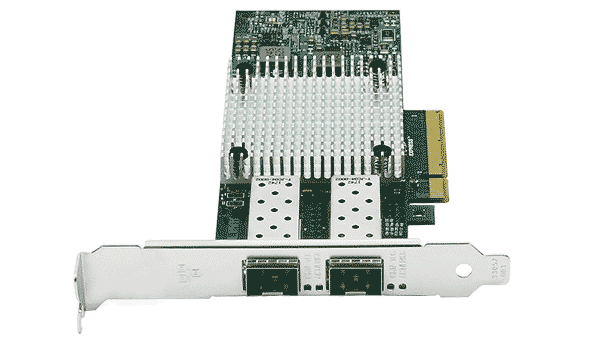

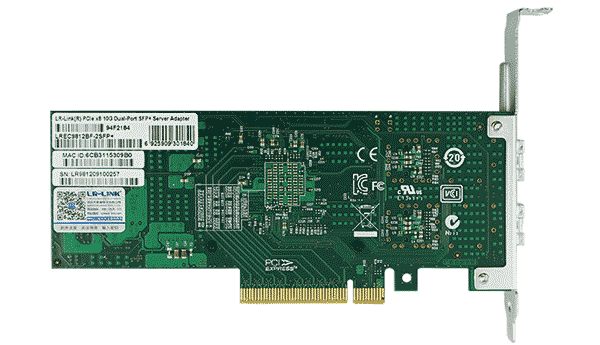

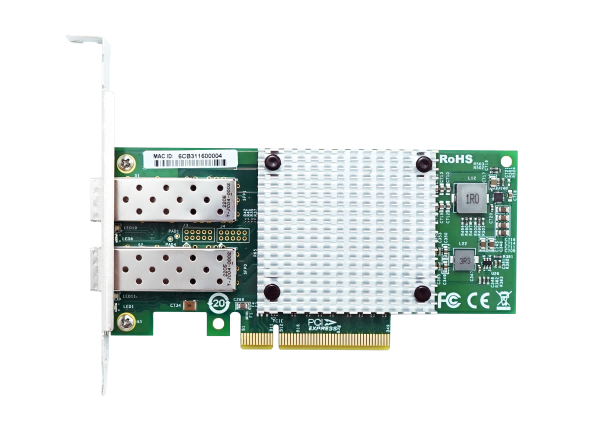

LREC9812BF-2SFP+

PCI Express v3.0 x8 10Gigabit Dual-port Ethernet Server Adapter Intel X710 Based (2 x SFP+)
Key Features
Dual-port 10GbE server adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
SFP+ Connectivity
PXE,iSCSI boot
Exceptional Low Power Adapters
IEEE 802.3ad and 10G Ethernet specification compliance
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low Profile and Full Height Bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LREC9812BF-2SFP+ is LR-LINK a new generation of high-performance server network adapter, based on the Intel X710 controller. The Server Adapter addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

The LREC9812BF-2SFP+ adapter deliver superior performance in a PCI Express v3.0 x8 slot. Optimized performance vectors and key uses include: Small Packet Performance, Bulk Transfer Performance, Network Virtualization, Storage Performance and so on.

Controller

Intel X710

Transmission rate per port

10GbE

Network Standard Physical Layer Interfaces

10GBASE-SR (LRXP8510-X3ATL)

10GBASE-LR (LRXP1310-10ATL)

SFF-8431: 10GSFP+ DAC (Direct Attach Copper)

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Network Virtualization

VLAN,VLAN tag, VXLAN, NVGRE, GENEVE,VLMB

LED Indicators OPERATION

Link Green:10Gb/s, Link Yellow: 1Gb/s

Power supply

PCI Express +12V±8%, +3.3V±8%

Operating System Support

Windows Server 2012 R2/2012 R2 core/2012/2012 core/2008 R2/2008 R2 core

Windows 7 x64/8/8.1/10

Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later

Model

Description

LREC9812BF-2SFP+

PCI Express v3.0x8 Dual Port SFP+ 10 Gigabit Server Adapter (Intel X710 Based)

LRXP8510-X3ATL(optional)

SFP+ Duplex 10Gbps 3.3V Multi-Mode Transceiver,850nm 0.3km

LRXP1310-10ATL(optional)

SFP+ Duplex 10Gbps 3.3V Single-ModeTransceiver, 1310nm , 10km

SFP+-10G-CU1M (optional)

SFF-8431 10G SFP+ DAC (Direct Attach Copper) 1M

SFP+-10G-CU3M (optional)

SFF-8431 10G SFP+ DAC (Direct Attach Copper) 3M

SFP+-10G-CU5M (optional)

SFF-8431 10G SFP+ DAC (Direct Attach Copper) 5M

PS: Above details are only for reference, if there are any changes, no inform will have.
