LREC9811BT

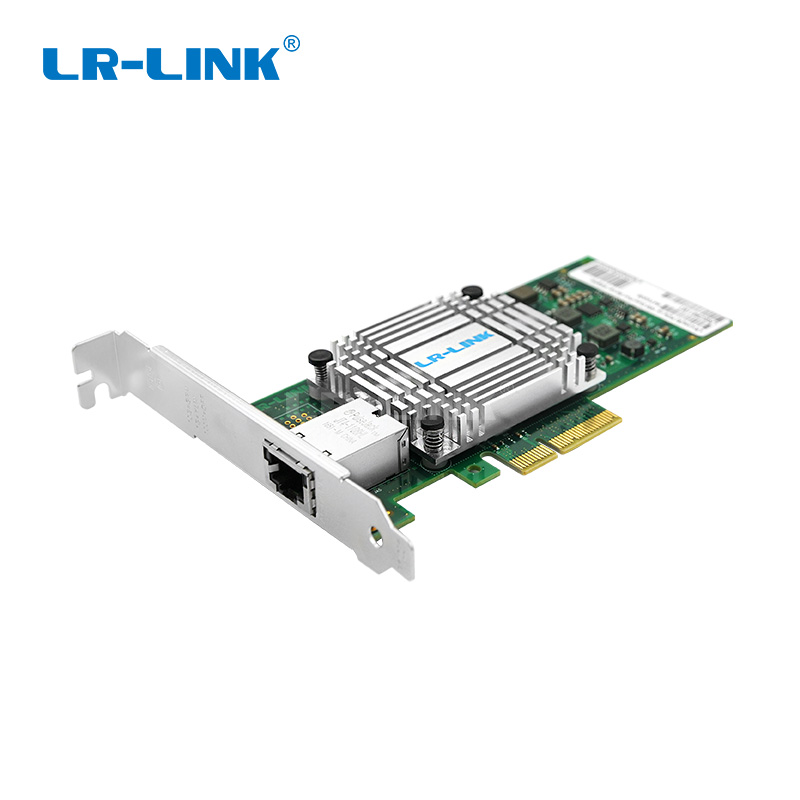

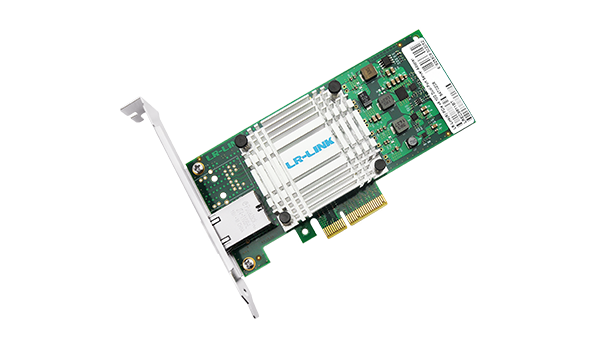

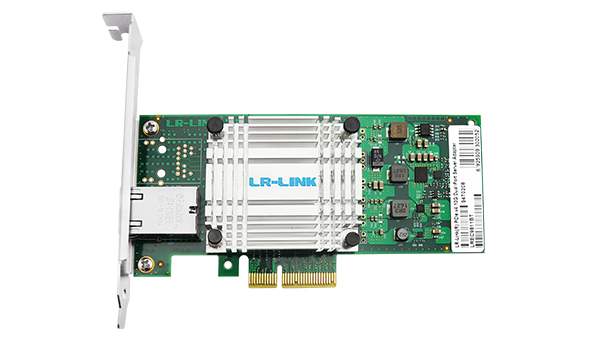

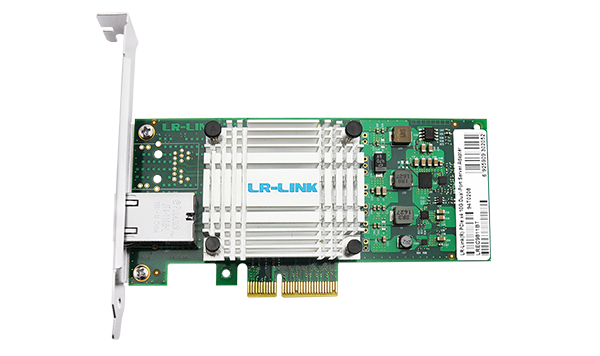

PCIe v3.0 x4 10 Gigabit Single Copper Port Ethernet Server Adapter (Based on Intel X550)
Key Features
Single port 10GbE adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes
Low cost, low power,10 GbE performance for the entire datacenter.
Standard CAT 6a cabling with RJ45 connectors.
New generation single and dual port 1OGBASE-T controller with integrated MAC and PHY
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
Network Virtualization, low latency
Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products


LREC9811BT a PCIe x4 3.0 10Gbps Single Port Ethernet Server Adapter based on Intel X550 chipset, independently developed by Shenzhen Lianrui Electronics CO., ltd,and is compatible with PCIe x8,x16 slot.This adapter card optimizes its performance, making the system I/O no longer be the bottleneck of the network application.

The Server Adapter LREC9811BT Simplifies Migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).


Controller

Intel Ethernet Controller X550AT

Baffle Height

Full height and half height

Power Consumption

Typical  Power11.2W;  Maximum Power13.0W

System Support

Windows Server* 2012 R2;

Windows Server 2012 R2 Core;

Windows Server 2012;

Windows Server 2012 Core;

Windows Server 2008 R2;

Windows Server 2008 R2 Core;

Linux* Stable Kernel version 2.6.32/3x;

Linux* RHEL 6.5 and RHEL 7.0;

Linux* SLES 11 SP3 and SLES 12;

FreeBSD* 9 and FreeBSD* 10;

UEFI* 2.1; UEFI* 2.3;

VMware ESXi 5.1(Limited Functionality);

VMware ESXi 5.5

Ports

Single 10GBASE-T RJ45 Port

Bus type

PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible)

Bus Width

x4 lane PCle operable in x8 and x16 slots

Data rate supported per port

10 GbE/1 GbE/100MbE

LED Indicators

Link(green/orange bright)and ACTIVITY( green flashing)

Link Rate(green=10Gbps;orange=1Gbps/100Mbps)

Virtual Machine Device Queues (VMDq)

Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage

QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking

Sorting based on MAC addresses and VLAN tags

Support for PCI-SIG SR-IOV

Up to 64 VFs per port

IEEE 802.1Q VLAN Support with VLAN Tag

Ability to create multiple VLAN segments

VXLAN Stateless Offloads

A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks

NVGRE Stateless Offloads

Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks

Intel® Flow Director

Yes

MSI-X

Yes

FPP - 64 VFs Per Port

Yes

Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities

Yes

Tx TCP Segmentation Offload

Yes

SNMP and RMON

Yes

Protocol Support

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification

compatible the 10 GbE 802.3ap (KR) Specification

compatible 1000BASE-BX Specification

PXE

Yes

WoL

No

Jumbo frames

15.5 KB

Ethernet power management

Yes

Storage

iSCSI, NFS,FCoE,SMB

Operating temperature

0 °C to 55 °C (32 °F to 131 °F)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Storage humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Air Flow

Minimum of 1 50 LFM required

Certifications

FCC CE RoHS

Size(LxWxH)mm

137X69X1.6 mm


P/N

Description

LREC9811BT

PCI-Express x4 Single Port Copper 10 Gigabit Ethernet Server Adapter Intel X550 Based (1*RJ45)

PS: Above details are only for reference, if there are any changes, no inform will have.
