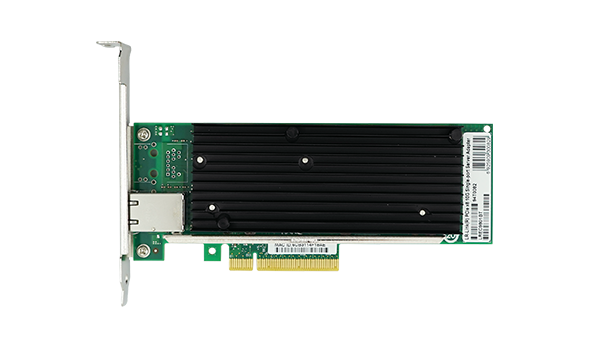

LREC9801BT PCIe x8 10Gbps Sing Port Server Adapter Intel X540 Based
  • PCI Express x8 Single Copper Port 10 Gigabit Server Adapter (Intel X540 Based)
  • PCI Express x8 Single Copper Port 10 Gigabit Server Adapter (Intel X540 Based)


PCI Express x8 Single Copper Port 10 Gigabit Server Adapter (Intel X540 Based)
Key Features
• Single Port 10GbE adapters
• PCI Express v2.1,5.0 GT/s, x8 lanes
• PXE,iSCSI ,FCoE boot
• Standard CAT-6a Cabling with RJ45 Connectors
• Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE
• Network Virtualization
• IEEE 802.3an/ab and 10G Ethernet Specification Compliance
• Low profile and full-height bracket


  • Overview
  • Specifications
  • Ordering Information
  • Drive Files
  • Relative Products

LREC9801BT is a PCIe x8 10Gbps Single Copper Port Ethernet copper Server Adapter based on Intel X540 chipset, and is compatible with PCIe x16 slot.Thisserver adapteroptimizes its performance , making the system I/O no longer be the bottleneck of the network applicationand itcan be used in any PCI Express X8 host device and its master control (Intel X540 10G Ethernet controller) includes two fully integrated EthernetMediaAccessControl (MAC) and two fully integrated 10GBASE-T copper PHYs ports.

The Server Adapter LREC9801BT Simplifies Migration to 10 Gigabit Ethernet(GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).


Intel X540

Transmission Rate Per Port


Network Standard Physical Layer Interfaces

Cat-6A 10G up to 100m,Cat-6 10G up to 55m

Cat-5E/Cat-6/Cat-6A 1G/100M up to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0℃to 55℃(32℉to 131℉)

Virtualization Technology


LED Indicators

10Gb/s: Green and Green blinking,1Gb/s/100Mb/s: Green and Orange blinking

Operating System Support

Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2

Windows 7 / 8 / 8.1 / 10

FreeBSD 9 / 10 / 11 or later

Linux Stable Kernel version 2.6./x/3.x/4.x or later

VMware ESX/ESXi 5.x/6.x or later




PCI Express x8 Single Port Copper 10 Gigabit Ethernet Server Adapter Intel X540 Based (1*RJ45)

PS: Above details are only for reference, if there are any changes, no inform will have.
