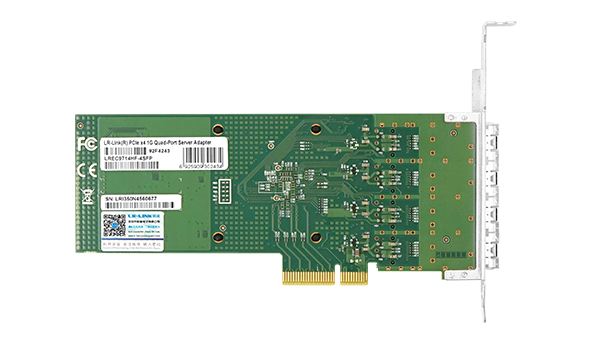

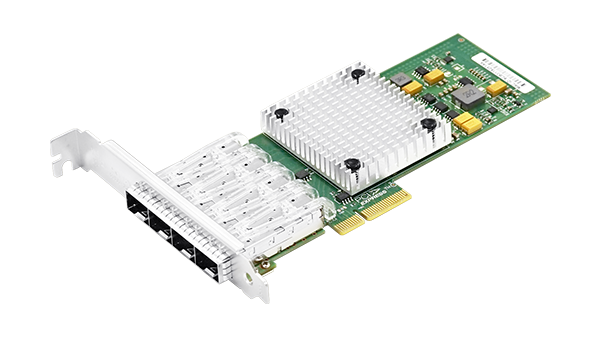

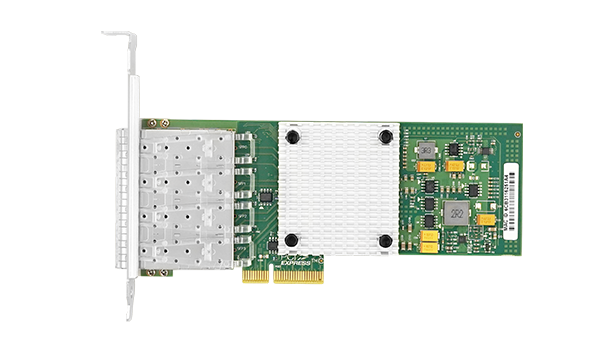

LREC9714HF-4SFP Intel I350 Chip PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
  • PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)

LREC9714HF-4SFP

PCIe X4 1000Mbps Quad SFP Port Server Network Interface Card NIC Intel I350 Based (4 x SFP)
Key Features
Quad SFP Port
PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
SFP Connectivity
Network Virtualization
Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports
IEEE 802.1q VLAN support with VLAN tag insertion
Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LREC9714HF-2SFP is a PCIe x4 1Gbps Dual-Port SFP Sever Fiber Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on a server workstation and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its two or four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.



Controller

Intel I350

Transmission Rate Per Port

1 GbE

Network Standard Physical Layer Interfaces

1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm

1000BASE-LX: 10Km at 9µm

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

Link LED: Green; ACT LED:Yellow

Operating System Support

Windows Server 2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux SLES 10 / 11 or later

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

VMware ESX/ESXi 4.x/5.x/6.xor later



P/N

Description

LREC9714HF-2SFP

PCI-Express x4 Quad Port Gigabit Ethernet Server Adapter Intel I350 Based (4xSFP)

LRGP512-X5ATL

1.25Gbps SFP Multi-Mode Transceiver, 850nm,550M

LRGP1312-20ATL

1.25Gbps SFP Single-Mode Transceiver,1310nm,20KM

PS: The above details are only for reference,if there is any change,no inform will have.
