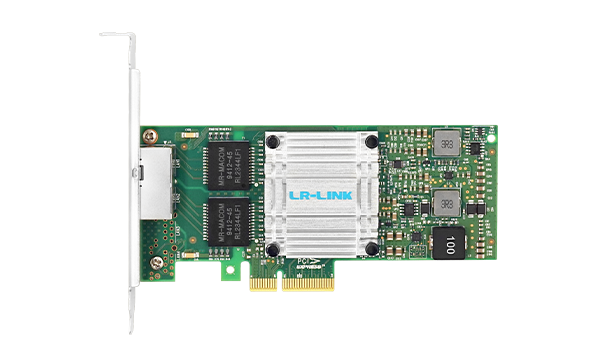

LREC9712HT

PCI Express x4 Dual Port Copper Gigabit Ethernet Server Adapter Intel I350 Based
Key Features
• Dual Port 10/100/1000Mbps adapters
• PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
• RJ45 Connectivity
• Network Virtualization
• Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports
• Vital Product Data(VPD) Support
• Management Component Transport Protocol(MCTP)
• Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

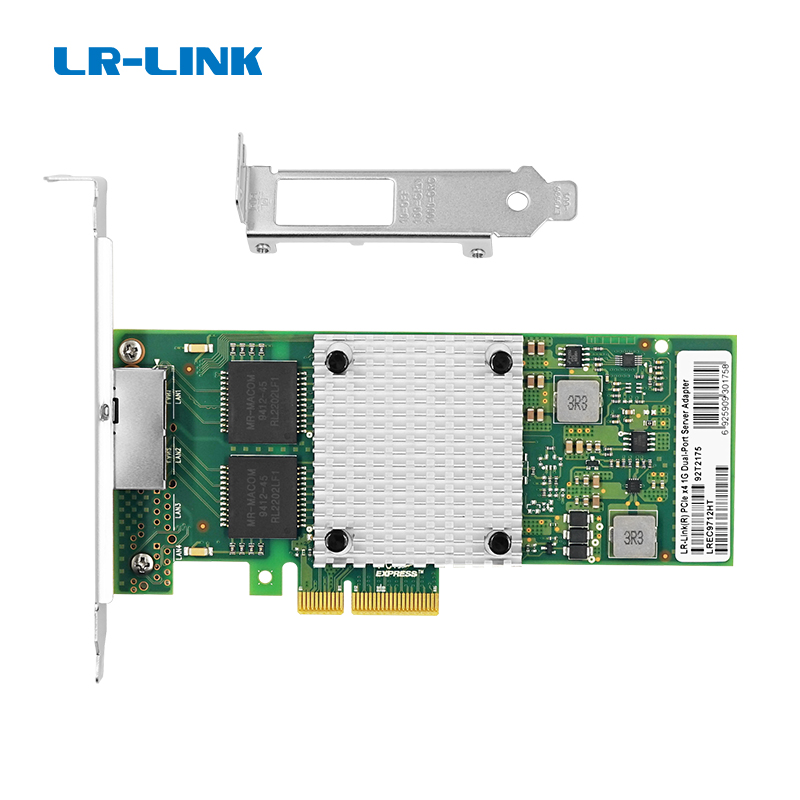

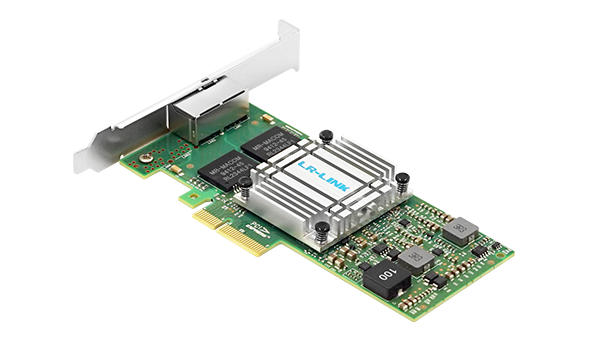

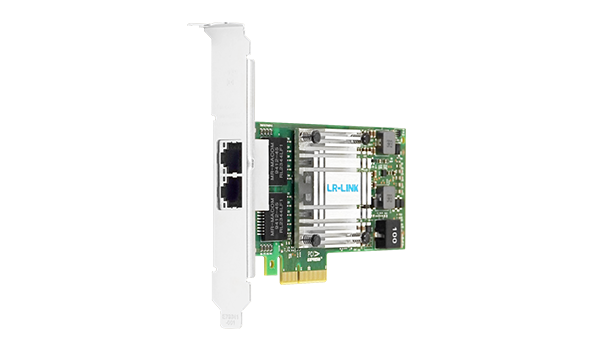

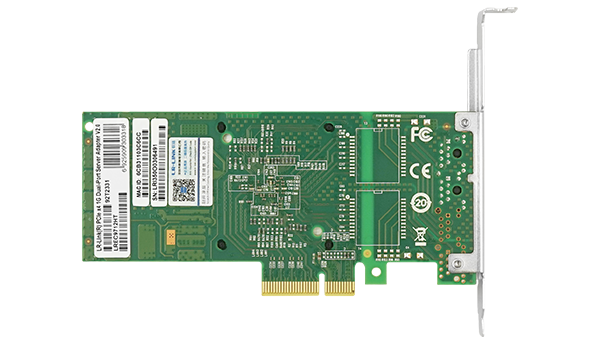

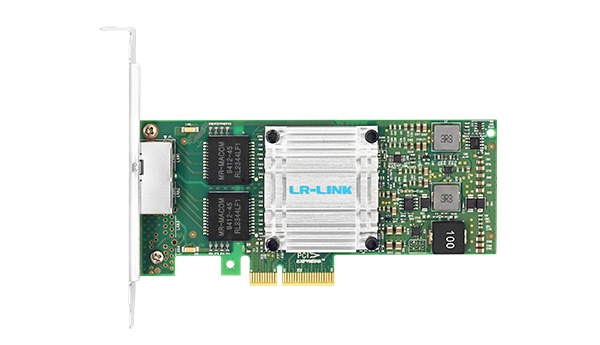

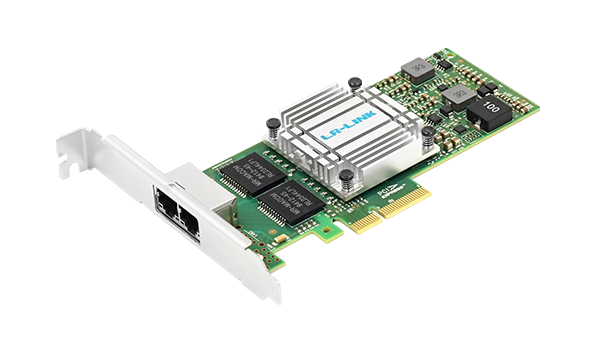

LREC9712HT is a PCIe x4 1Gbps Dual-Port Copper Sever Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on servers and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.

Controller

Intel I350

Transmission Rate Per Port

10/100/1000Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higher up to 100m

100BASE-Tx:Cat5/5e/6or higher up to 100m

10BASE-T: Cat3/4/5/5e/6or higher up to 100m

Jumbo Frame Support

Up to 9 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps/s:Yellow Link and Green Ack,

100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate

Operating System Support

Windows Server 2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 9 / 10 / 11or later

VMware ESX/ESXi 4.x /5.x / 6.xor later

Model

Description

LREC9712HT

PCI Express x4 Dual Port Copper Gigabit Ethernet Server Adapter Intel I350 Based


PS: Above details are only for reference, if there are any changes, no inform will have.
