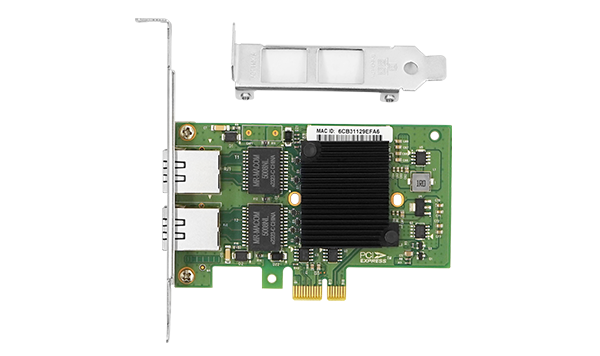

LREC9222HT

Intel I350 Chipset PCIe x1 Dual Port Network Interface Card ( 2 x RJ45)
Key Features

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products
LREC9222HT is a PCI Express x1 dual-port RJ45 Connector Gigabit Ethernet network card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 chip solution. It is also compatible with PCIe x4, x8, x16 channels. The network card design is primarily used on desktop workstations. The network card can be bundled into groups at the same time through multiple ports to achieve fault tolerance and redundancy to extend network bandwidth and ensure network performance. It can automatically detect and implement communication from the failed port to other members in the same group in real time, to achieve uninterrupted high performance communication.
The network card features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can load the accelerator, and the host processing technology can load the accelerator, which greatly releases the CPU resources and frees up more CPU resources to process other applications. This network card is an ideal solution for applications that deploy workstation networks.
The LREC9222HT was developed on the Intel I350 dual-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, allows both ports to operate in full-duplex mode for high-performance network communications in a Gigabit Ethernet connection, bandwidth can be extended by link aggregation and PCI Express channel resources can be saved without consuming bus bandwidth.

Features

Controller

Intel I350

Transmission Medium

Copepr UTP

Cable Type

1000Base-T Cat 5E / Cat6  Or Higher:Up to 100m

100Base-Tx Cat5/Cat 5E/ Cat6 Or Higher:Up to 100m

10Base-T Category 3/4/5/5E/6 Or Higher:Up to 100m

Bracket

Low Profile Bracekt and Full-height Bracket

Power Dissipation (MAX)

2.0W

Operating system support

Windows 10

Windows 8/8.1

Windows 7

Windows Vista

Windows XP

Windows Server 2003

Windows Server 2008 /R2

Windows Server 2012 /R2

Windows Server 2016 /R2

Novell Netware 5.x/6.x or later

Linux kernel version 2.4.x/2.6.x/3.x/4.x or later

FreeBSD 7/8/9 or later

Sun Solaris 9/10/11 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Connector

2* RJ45

PCIe Bus

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x1, Compatible with PCIe x4,x8 or x16

Data Rate Per Port

10Mbps/100Mbps/1000Mbps

Technical Parameters

Ethernet power management

Yes

IEEE* 802.3 adaptive

Yes

Support adaptation rate

10BASE-T, 100BASE-TX, 1000BASE-T

IEEE Standard / Network topology

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100base-TX

IEEE 802.3 az
IEEE 802.1Q VLAN

IEEE 802.1ad

PCI-SIG * SR-IOV Support

Yes

Jumbo frame Support

Yes

VMDq

Yes

DPDK Support

Yes

PXE Support

Yes

iSCSI Support

Yes

WOL Support

Yes

FCoE Support

No

Environmental Parameters

Operating Temperature

0 to 55 (32 to 131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage humidity

35% to 90%, non condensing

LED Indicators

LED Indicators

1000Mbps:Link Yellow+ Green blinking

Physical Features

PCB Dimension(mm)

104.5*66.8*1.6

Weight (g)

72g

Packing Details

Package Dimension(mm)

179*150*30

2U bracket

*1

Installation Guide

*1

Warranty Card

*1

Gross Weight (g)

171


Model

Description

Noted

LREC9222HT

PCIe x1 Dual Copper Port 1Gbps Ethernet Network Card

Based On Intel I350, 3U/2U bracket

  • LREC9222HT

    Category:Driver version: Size:656KB Views:0Date:2018-11-05
