LREC9212PT

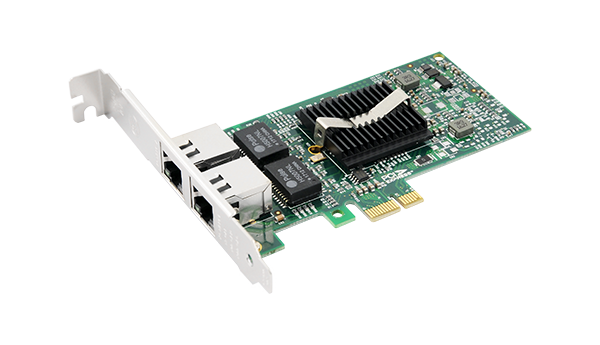

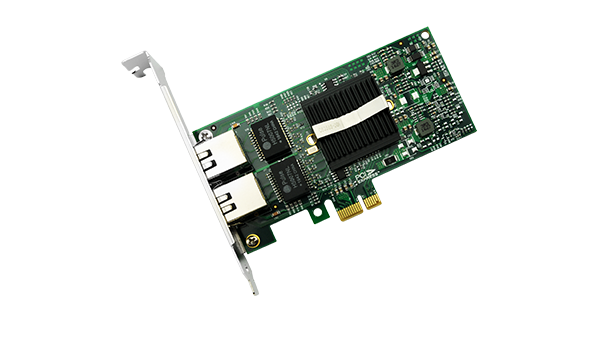

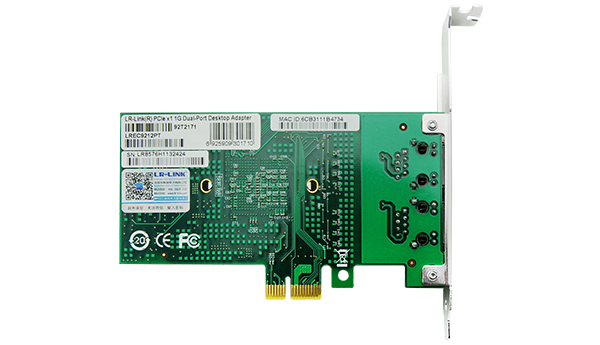

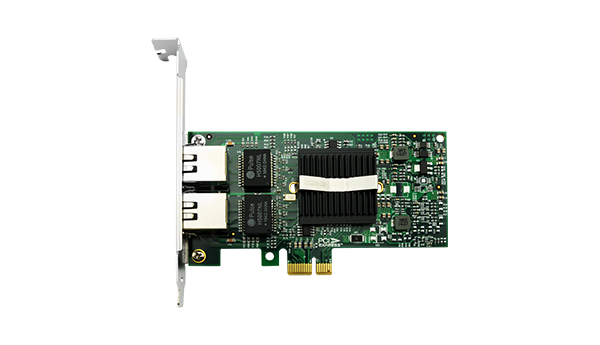

PCI Express x1 Dual Port Copper Gigabit Ethernet Server Adapter (Intel 82576 Based)
Key Features
• Dual Port 10/100/1000Mbps adapters
• PCI Express V2.0 (2.5GT/s) x1 lanes

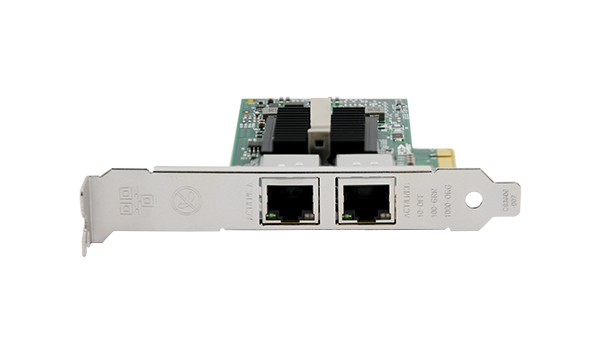

• RJ45 Connectivity
• Network Virtualization
• Improves performance and hroughput by reducing the I/O overhead due to the software virtualization layer
• Data Plane Development Kit (DPDK) support
• Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters

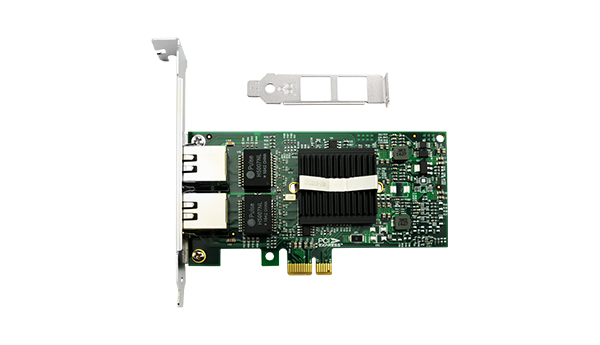

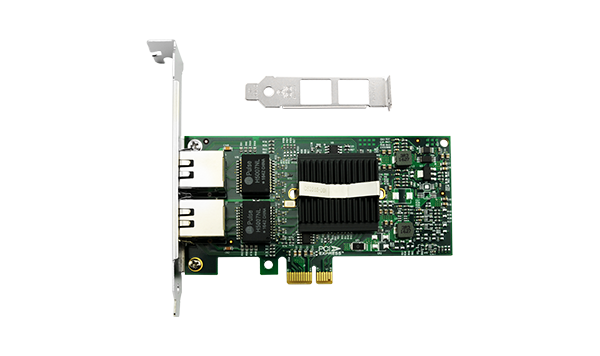

• Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LREC9212PT is PCI Express x1 10/100/1000Mbps Dual RJ45 Port Ethernet adapter based on Intel 82576 chipset, compatible with PCIex4, x8, x16 lane. The adapter is mainly designed for Industrial Control, and the performance is optimized, so that the system I / O is no longer the bottleneck of high-end network applications .The adapter has integrated hardware acceleration to perform TCP / UDP / IP checksum offload and TCP segmentation tasks. Host processing technology can sub-load accelerator, release CPU resources occupied to free up more CPU resources to handle with other applications. The adapter is based on Intel 82576EB Gigabit Ethernet MAC PHY (Media access Controller and physical Interface Transceiver) dual port controller.


Controller

Intel 82576

Transmission rate per port

10/100/1000Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higher up to 100m

100BASE-Tx:Cat5/5e/6or higher up to 100m

10BASE-T: Cat3/4/5/5e/6or higher up to 100m

Jumbo Frame Support

Up to 9 KB

Operating Temperature

0 °C to 50 °C (32 °F to 131 °F)

Network Virtualization

VMDq,VLAN

LED Indicators OPERATION

1000Mbps/s:Yellow Link and Green Ack,

100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate

Operating System Support

Windows Server 2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 9 / 10 / 11or later

VMware ESX/ESXi 4.x/5.x/6.xor later



Model

Description

LREC9212PT

PCI Express x1 Dual Port Copper Gigabit Ethernet Adapter Intel 82576 Based(2*RJ45)


PS: The above details are only for reference, if there are any changes, no inform will have.
