LREC9042PF-2SFP

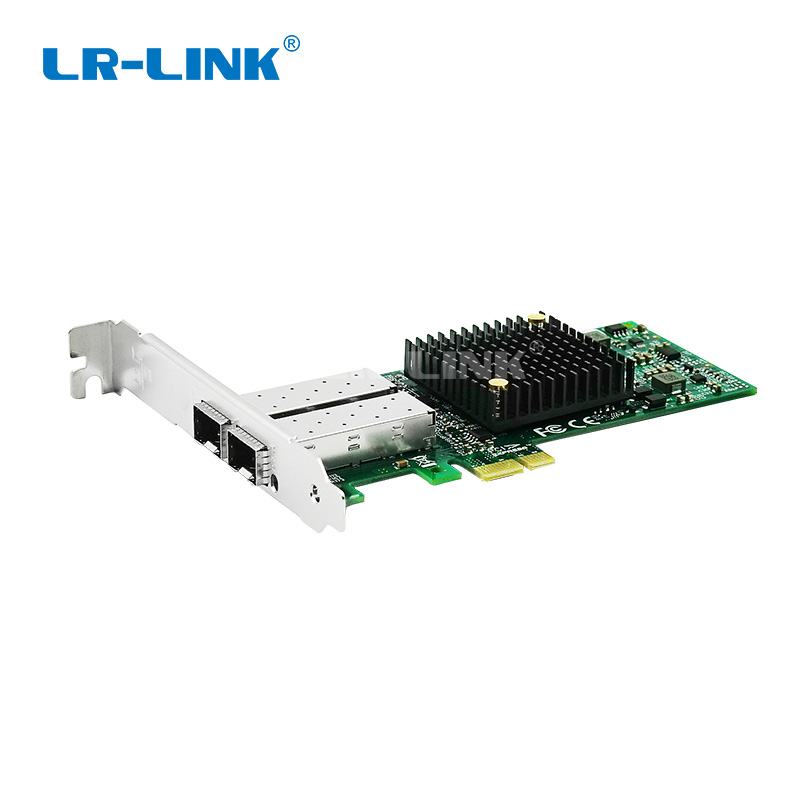

PCIe x1 100FX Dual SFP Port Fiber NIC (Intel 82580 Based)
Key Features
Dual-port 100Base-FX Fiber Network Adapter
PCI Express (PCIe) v2.0, 5 GT/s, x1 lanes
SFP LC Connectivity
PXE,iSCSI boot
Network Virtualization
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Drive Files
  • Relative Products

LREC9042PF-2SFP is widely applied on various occasions of FTTD, setting up optical fiber LAN network, optical fiber connection, not subject to electromagnetic interference and against lightning. The adapter with high data security, high reliability, stability and compatibility, has been widely used in the secret industries.

The adapter supports such as MSI-X and Low Latency Interrupts that help accelerate data across the multi-core platform, improving APP response times. The I/O technologies on multi-core platform make use of the multiple queues and multiple interrupt vectors available on the controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance.


Controller

Intel 82580

Transmission rate per port

100M

Network Standard Physical Layer Interfaces

100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm

100BASE-LX: 10Km at 9µm

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to131 °F)

Network Virtualization

VXLAN, MACinUDP, NVGRE, IPinGRE

LED Indicators OPERATION

Link/ACT Green Blinking:100M

Operating System Support

Windows Server 2016 R2/2012 R2/2012/2008 R2

Windows 7 x64/8/8.1/10

Linux Stable Kernel version 2.6.32/3.x/4.x orlater

VMvare ESX/ESXi 5.5/6.x orlater


Model

Description

LREC9042PF-2SFP

Intel 82580DBPCIe x1 100Base-FX Dual Port Fiber Desktop Adapter (2xSFP)

LRGP8512-X5ATL

1.25Gbps SFP Multi-Mode Transceiver, 850nm,550M

LRGP1312-20ATL

1.25Gbps SFP Single-Mode Transceiver,1310nm,20KM

PS:Above details are only for reference.If there are any changes, no inform will have.
