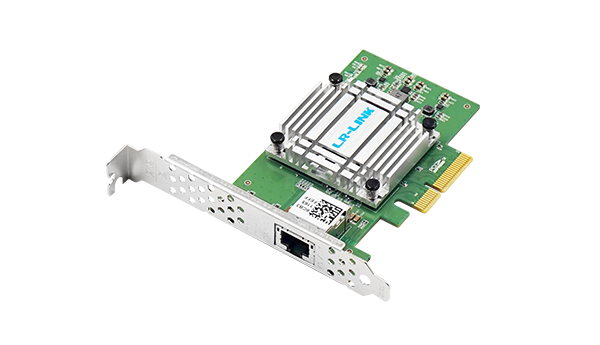

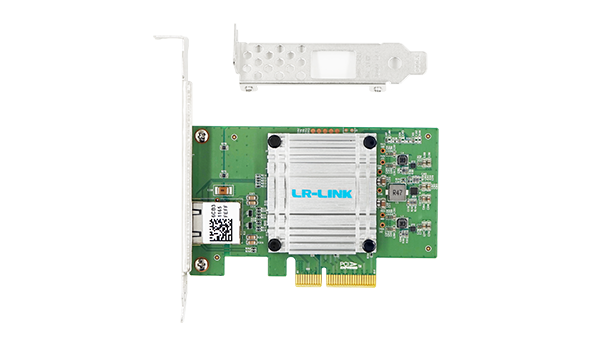

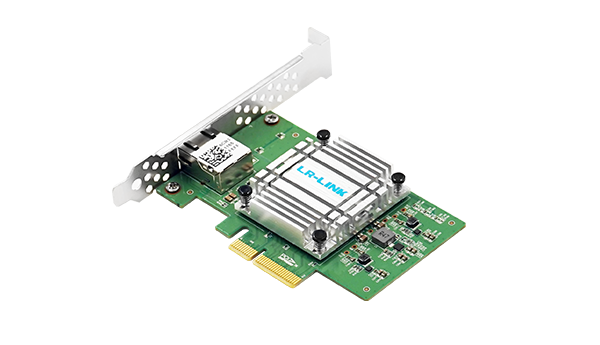

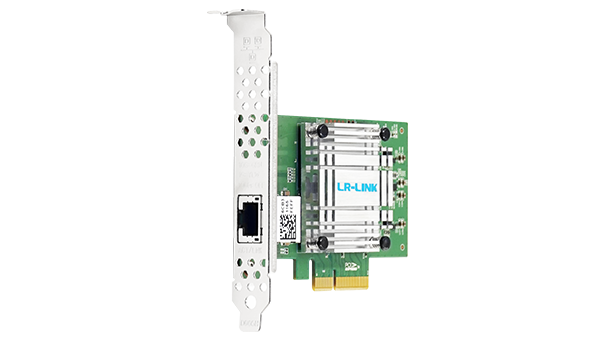

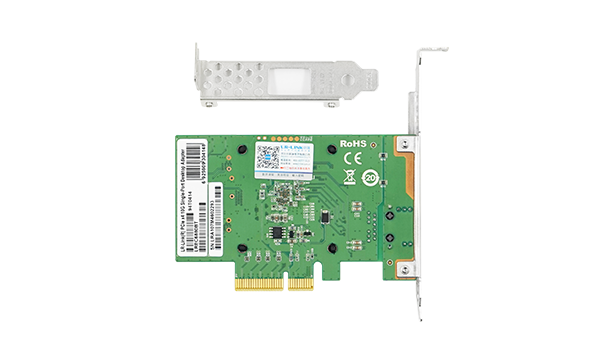

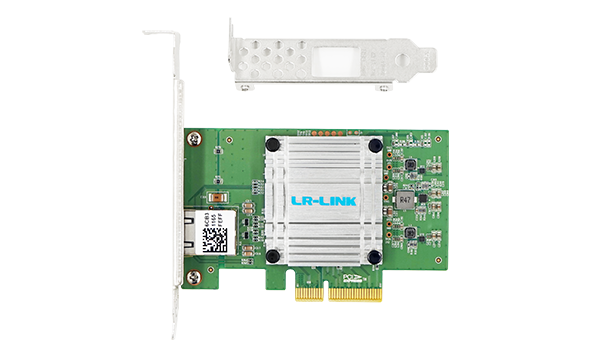

LREC6880BT

PCIe x4 Single-port RJ45 10G Ethernet network adapter (Aquantia AQtion AQC107 Based)
Key Features
Low cost, low power,energy-efficient Ethernet.
1 Gbps to 10 Gbps, 5 Gbps, 2.5 Gbps and 100M data rates.
Jumbo frame support up to 16 KB.
Extensive software support: Windows and Linux drivers; UEFI and PXE
remote boot.
PCI Express (Pcle) v 3.0 x4 lanes.
MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products

LREC6880BT is a PCI Express x4 single-port 10 Gigabit Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Aquantia AQtion AQC107 chip solution. It is also compatible with PCIe x8 and x16 channels. A high-performance, five-rate NIC adapter that integrates PCIe, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCIe x4 universal interface gives this product great flexibility.

The integrated PHY can be routed through Cat 6a at speeds up to 10 Gbps over a distance of 100 meters. It also supports 5 Gbps network connections over traditional Cat 5e or Cat 6 cabling.

The LREC6880BT is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling.

MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support.

Specifications


Controller

Aquantia AQtion AQC107


Transmission medium

Copper


Type

10GBase-T: Cat 6 or higher up to 100m


5GBase-T: Cat 6 or higher up to 100m


2.5GBase-T: Cat 5e or higher up to 100m


1GBase-T: Cat 5e or higher up to 100m


100MBase-T: Cat 5 or higher up to 100m


Baffle Height

Half & Full height


Power Consumption

4.7W


Connector

1*10G RJ45


PCI-e Bus Type

PCI Express v2.0 (8.0GT/s) x4 , compatible with x8, x16


Data rate per port

100M/2.5G/5.0G/10Gbps


Power supply

PCIe


Standards compliant

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az - Energy Efficient Ethernet (EEE)


OS Support

* Windows 78/8.110

* Windows Server 2008 / R2

* Windows Server 2012 / R2

* Windows Server 2016 / R2

* Windows Server 2019 / R2

* Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

* CentOS / RHEL 6.x / 7.x or later

* Ubuntu14.x/16.x or later

* FreeBSD 9 / 10 / 11 or later

* Vmware ESX/ESXi 5.x / 6.xor later


PXE

Yes


DPDK

Yes


WOL

Yes


iSCSI

No


Jumbo Frames

Yes (Up to 16KB)


FCoE

No


LED Indication


LED Indication

1000MbpsGreen bright + Green flashing


5G/2.5G/1000M/100M: Orange bright + Green flashing


Environment Features


Operating Temperature

0 to 55 (32 to 131)


Storage Temperature

-40 to 70 (-40 to 158)


Storage Humidity

Maximum: 90% non-condensing relative humidity at 35


Certification

FCC B,CE


Physical Features

Product Size(mm)

117*120*21

Sackage Size (mm)

225*150*30

Weight(g)

200



P/N

Description

LREC6880BT

PCIe x4 Single-port 10G Ethernet network adapter (AQTION AQC107 Based)
