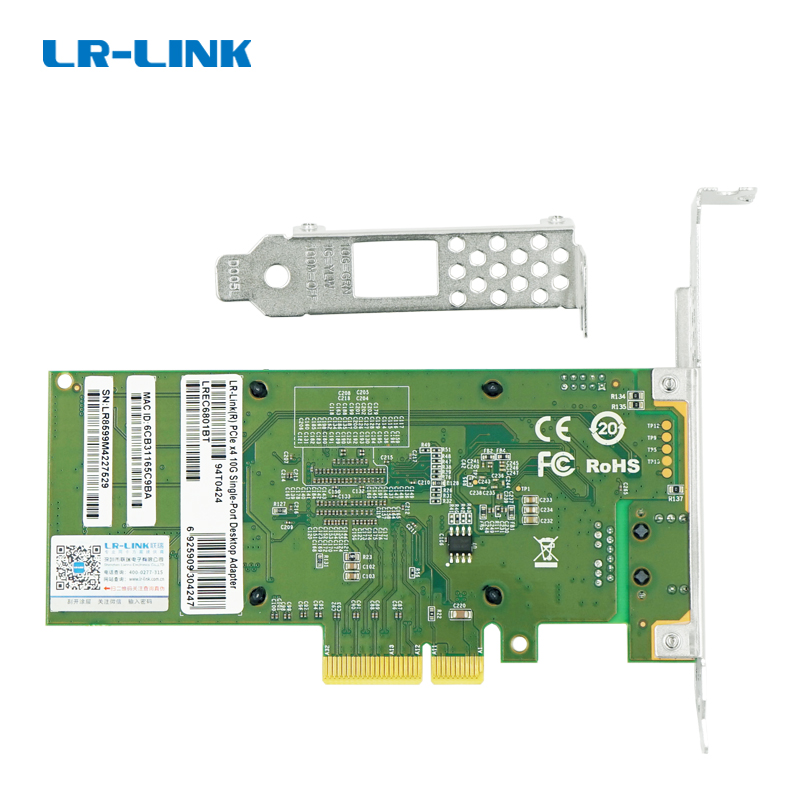

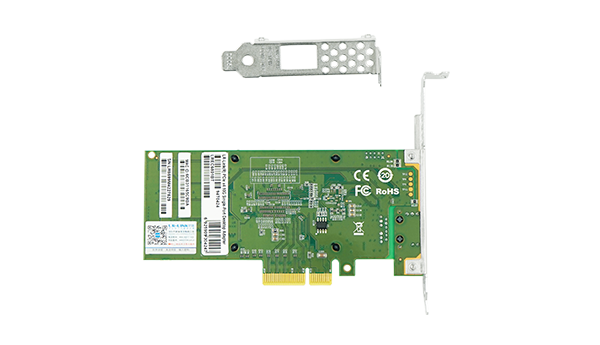

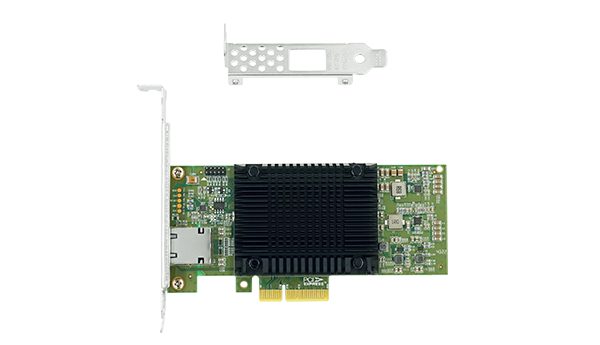

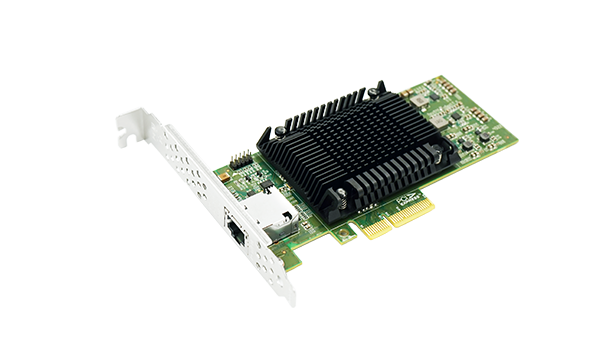

LREC6801BT

Intel 82599 Based PCIe x8 Single Copper Card 10Gbps Copper Network Interface Card
Key Features
Intel(R) 82599 Controller
1 x RJ45
10Gbps Speed
PCIe x8,compatible with x16
PXE supported
Low profile and Full-height Bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering Information
  • Driver
  • Relative Products



Descriptions:

LREC6801BT is a PCI Express x8 10Gbps Single Port Ethernet Copper Network Adapter based on Intel 82599 chipset developed by Shenzhen Lianrui Electronics Co.. Its design can be applied on occasions like net bar servers and FTTD. This adapter can flexibly integrate PCIe x8 network to 10G network and also improve capability of the adapter, which makes System I/O no longer the bottleneck of High-end applications. It can manage changing data, link, physical layers, logical layers and data packet flow passing through. The controller shares tasks of the host by speeding up hardware such as TCP/UDP/IP calibration, calculating tasks and TCP section. The adapter is the ideal solution for mass net arrangement and network application environment of high-capability servers.

LREC6801BT adapter provides hardware enhancement technologies like improving intelligent queue skills for multi-core CPUs and it supports load balancing to realize expandability of 10G Ethernet to a new level. The support includes Intel VTc on network level which can improve total system capability under virtual server environments. The VMDq of Intel VTc technology can increase capability as well as decrease CPU utilization by sorting and loading data from VMM to Internet controller. The latest increased features include unloading change between virtual machines in the servers,VMDc to virtual machine with almost perfect capability.

LREC6801BT adapter provides features including of hardware optimization of I/O virtualization and unified Network support, reforming data centre by its outstanding reliablity, expansibility and mobility.



Features

Controller

Intel(R) 82599

Cable

10G BASE-T

Cable Types

Cat-6A or later: 100m

Bracket

Low profile and Full-height Bracket

Power consumption(max)

10.7W

Operating system Support

Windows Vista

Windows 7,8,8.1,10

Windows 8

Windows 8.1

Windows 10

Windows Server 2003

Windows Server 2003 R2

Windows Server 2008

Windows Server 2008 R2

Windows Server 2012

Windows Server 2012 R2

Windows Server 2016

Windows Server 2016 R2

Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later

SUSE Linux Enterprise Server 10 / 11 or later

FreeBSD 9 / 10 or later

RHEL / CentOS 5 / 6 / 7 or later

VMware ESX/ESXi 4.x / 5.x / 6.x or later

Connector

1 x 10G RJ45

PCIe slot

PCI Express v2.0 (5.0GT/s) x8,compatible with x16

Connector Rate

10000 Mbps

Power

Power By PCIe: +12V±8%/ +3.3V±9%

Technical Features

Ethernet Power Management

Yes

IEEE Standard

IEEE 802.3ap

IEEE 802.1Q VLAN
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1qbb

IEEE 1588

PXE

Yes

DPDK

Yes

Jumbo frame

Yes

iSCSI

Yes

FCoe

Yes

WOL

No

Environment Features

Operating Temperature

0 to 55 (32 to 131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

90% non condensing under 35

Certifications

FCC , UL, CE, VCCI, BSMI, CTICK, KCC

LED Indicators

LED

Solid Green + Blink Green

Ordering Information

Model

Description

Noted

LREC6801BT

PCIe x8 10G Dual Port Fiber Server Adapter

Intel(R) 82599 Based, 3U/2U bracket
